DescriptionHeavy-Duty Manual Stacker: Cost-Effective Lifting Solution for Small Warehouses
Product Introduction:

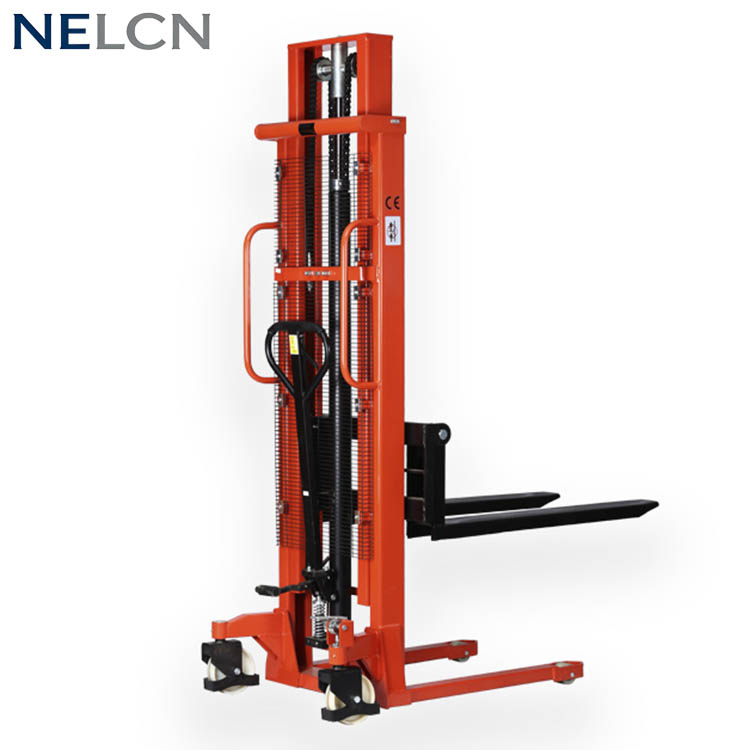

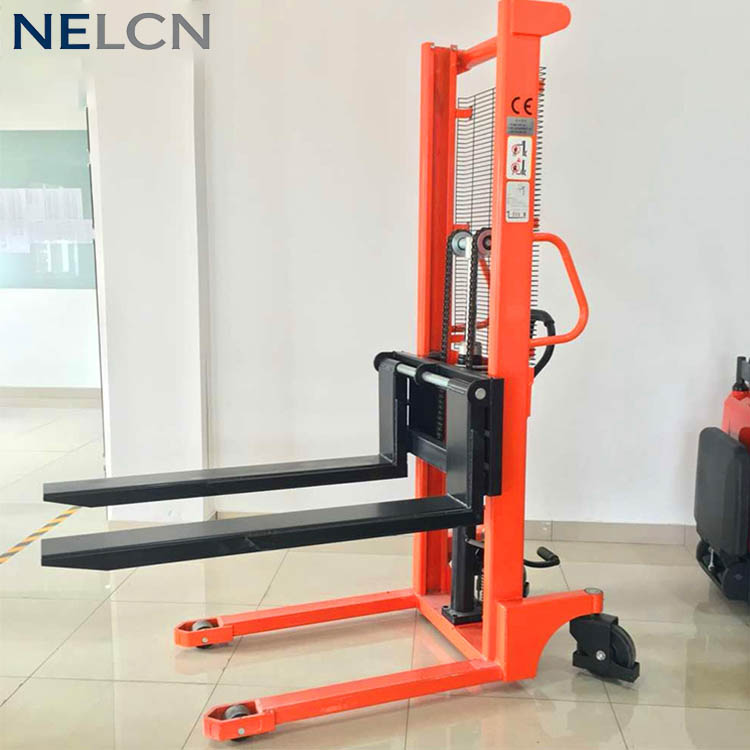

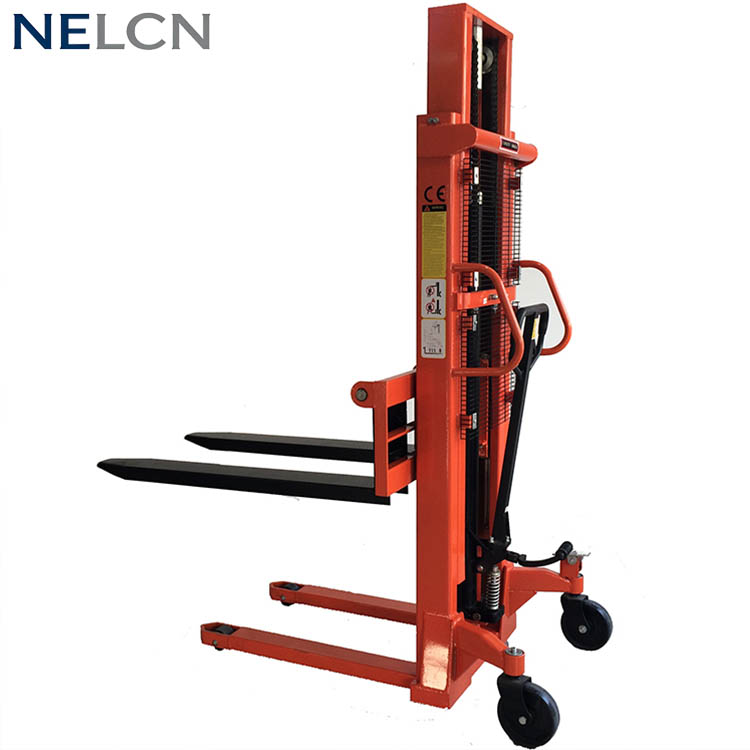

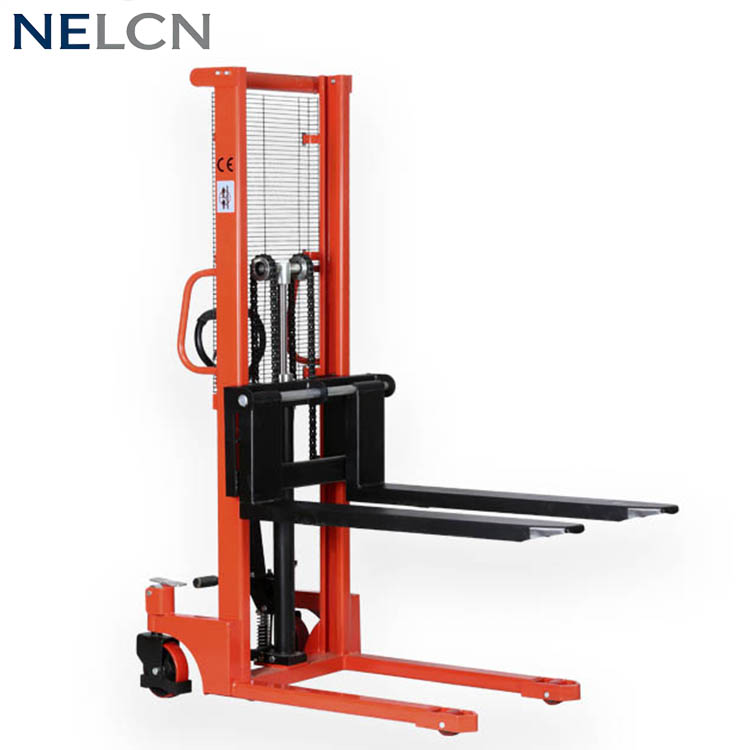

The NOELIFT Manual Hydraulic Stacker is an essential material handling tool for efficient vertical stacking and short-distance transport.
Load Capacity: Available in 1000kg, 1500kg, and 2000kg models.
Lift Height: Telescopic mast options reaching up to 1.6m - 3.0m.
Superior Build: Reinforced steel chassis with anti-corrosion powder coating for harsh industrial environments.
Dual-Action Lifting: Choose between the ergonomic hand lever or the convenient foot pedal to actuate the hydraulic lift.

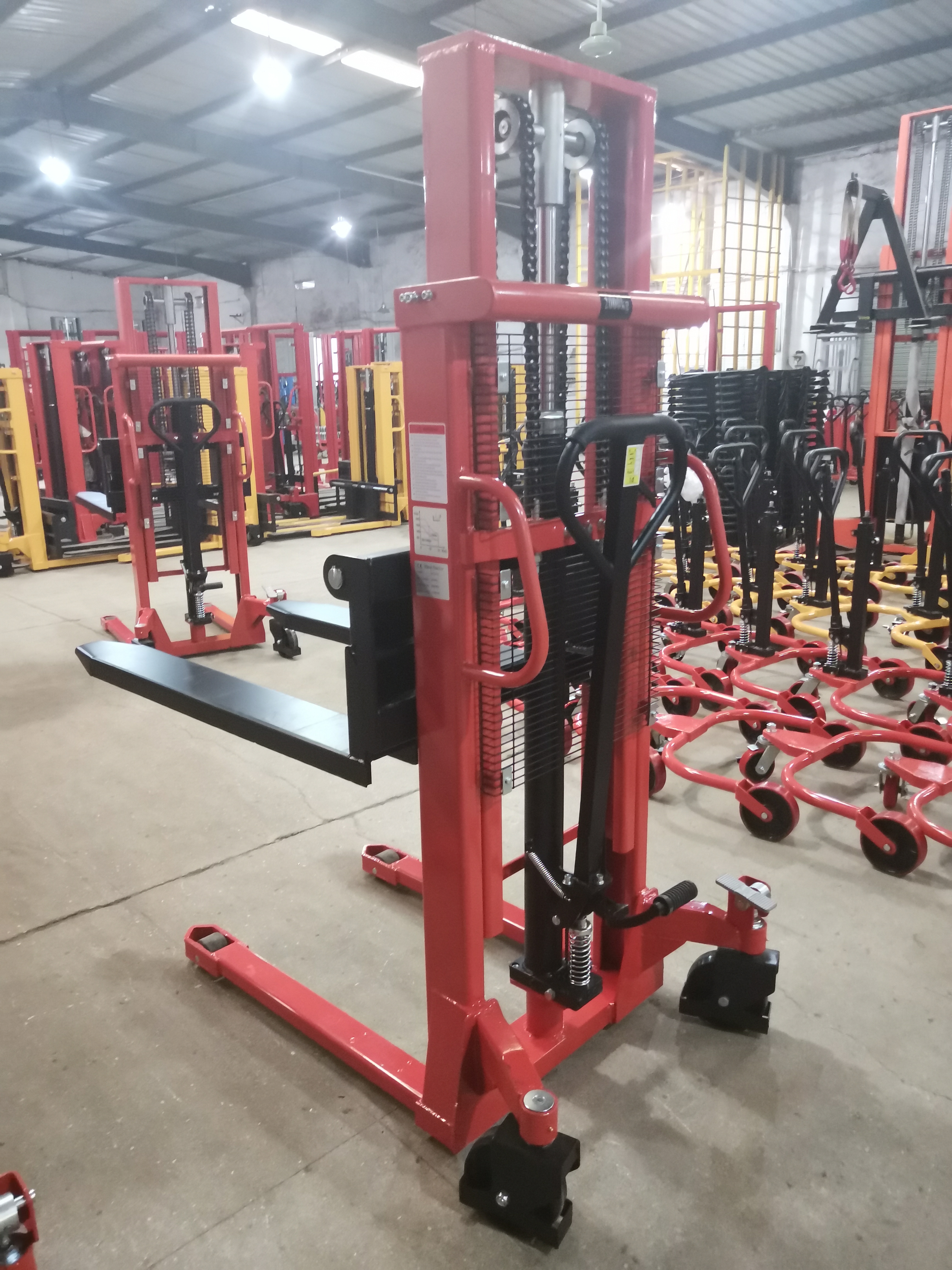

Adjustable Forks: Specifically designed to accommodate various pallet sizes, including Euro and customized pallets.
Maintenance-Free: No batteries or electrical components, significantly lowering your long-term operational costs.
|
Quick Specifications
Our Manual Hydraulic Stacker is the most economical alternative to forklifts. It is specifically engineered for loading/unloading goods from vehicles and stacking pallets in rack systems where space is at a premium.
| Model | SYC0516 | SYC1016 | SYC1516 | SYC2016 | SYC1020/1520/2020 | SYC1025/1525 | SYC1030/1530 | |
| Power type | Manual | Manual | Manual | Manual | Manual | Manual | Manual | |
| Rated load | kg | 500 | 1000 | 1500 | 2000 | 1000/1500/2000 | 1000/1500 | 1000/1500 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Service Weight | kg | 150 | 224 | 240 | 270 | 290 | 310 | 330 |
| Load wheel size | mm | Φ180*50 | Φ180*50 | Φ180*50 | Φ180*50 | Φ180*50 | Φ180*50 | Φ180*50 |
| Front wheel size | mm | Φ80*58 | Φ80*58 | Φ80*58 | Φ80*58 | Φ80*58 | Φ80*58 | Φ80*58 |
| Number of wheels,front/rear | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | |
| Max. Lift height | mm | 1600 | 1600 | 1600 | 1600 | 2000 | 2500 | 3000 |
| Minimum height of fork surface | mm | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Overall dimension | mm | 1600*760*2030 | 1600*760*2030 | 1600*760*2030 | 1600*760*2030 | 1600*760*1580 | 1600*760*1840 | 1600*760*2080 |
| Fork Length | mm | 1000 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| Fork width | mm | 330-740 | 330-740/550 | 330-740/550 | 330-740/550 | 330-740 | 330-740 | 330-740 |

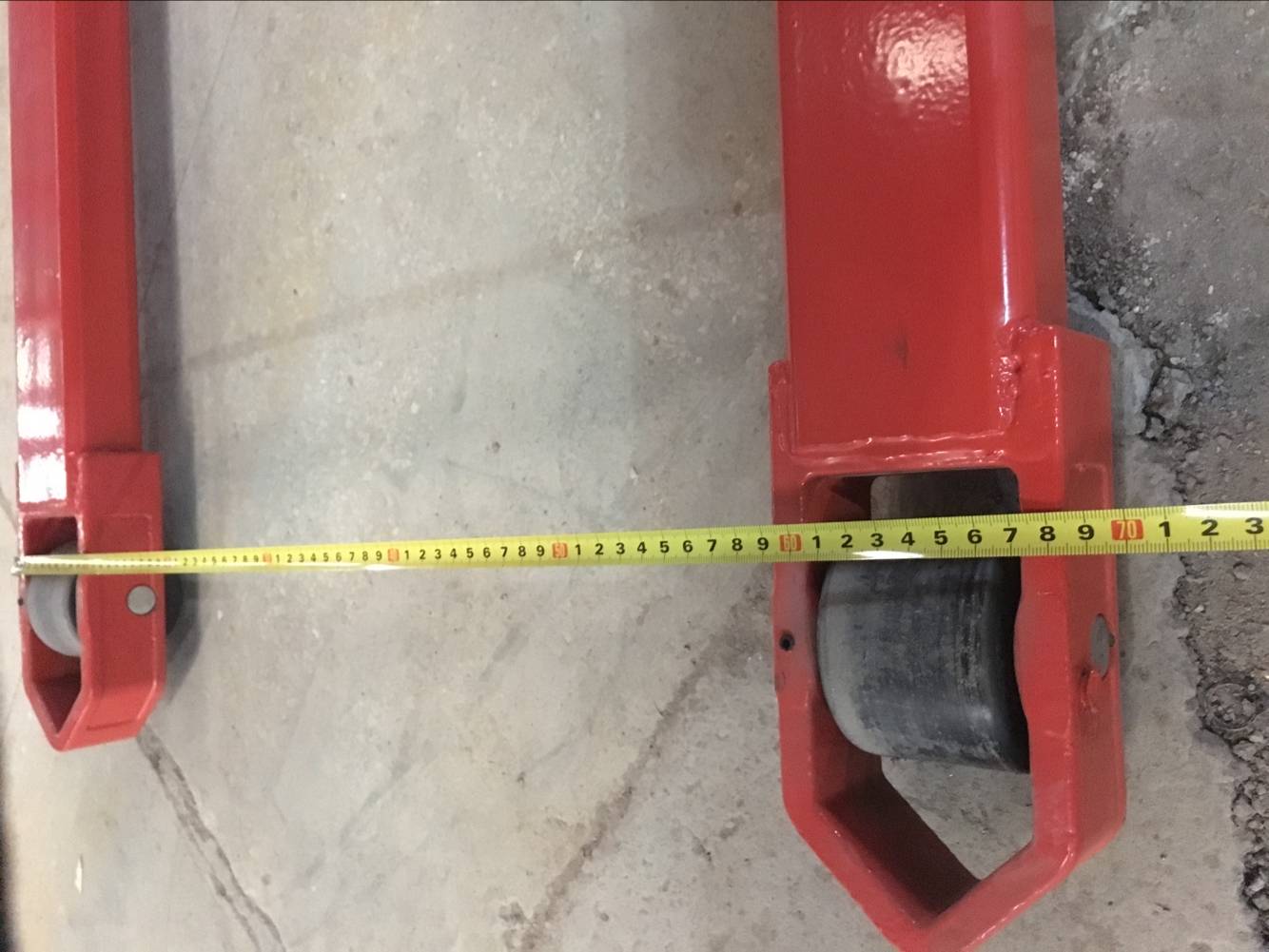

| Leg width | mm | 690 | 690 | 690 | 690 | 690 | 690 | 690 |
| Mast type | Single type | Single type | Single type | Single type | Duplex mast | Duplex mast | Duplex mast |
|
Key Features & Industrial Benefits
Unlike lightweight competitors, our stacker frames are built with high-grade C-channel steel. This ensures zero torsion under full load and extends the service life to over 10 years with minimal maintenance.
The heart of our manual stacker is the leak-proof hydraulic cylinder. It features:
Foot Pedal & Hand Lever: Dual-action lifting for operator convenience.
Chrome-Plated Piston: Provides smooth operation and resists corrosion.
Overload Protection Valve: Automatically prevents lifting beyond rated capacity to ensure safety.
With a compact turning radius (approx. 1250mm), this stacker excels in tight spaces where large electric equipment cannot maneuver. The protective screen ensures the operator has high visibility while remaining shielded from the lifting chain.
|Product advantage
1.It applies C type steel structure design , Lifting more stable and safe.
2.AIll Manual stacker have been equipped with wheel frame protection device.
3.The handle have been surround with rubber.With lengthening design,Using more comfortable.
4.Single Frame have two ways to unload by manual and pedal,using more flexible.

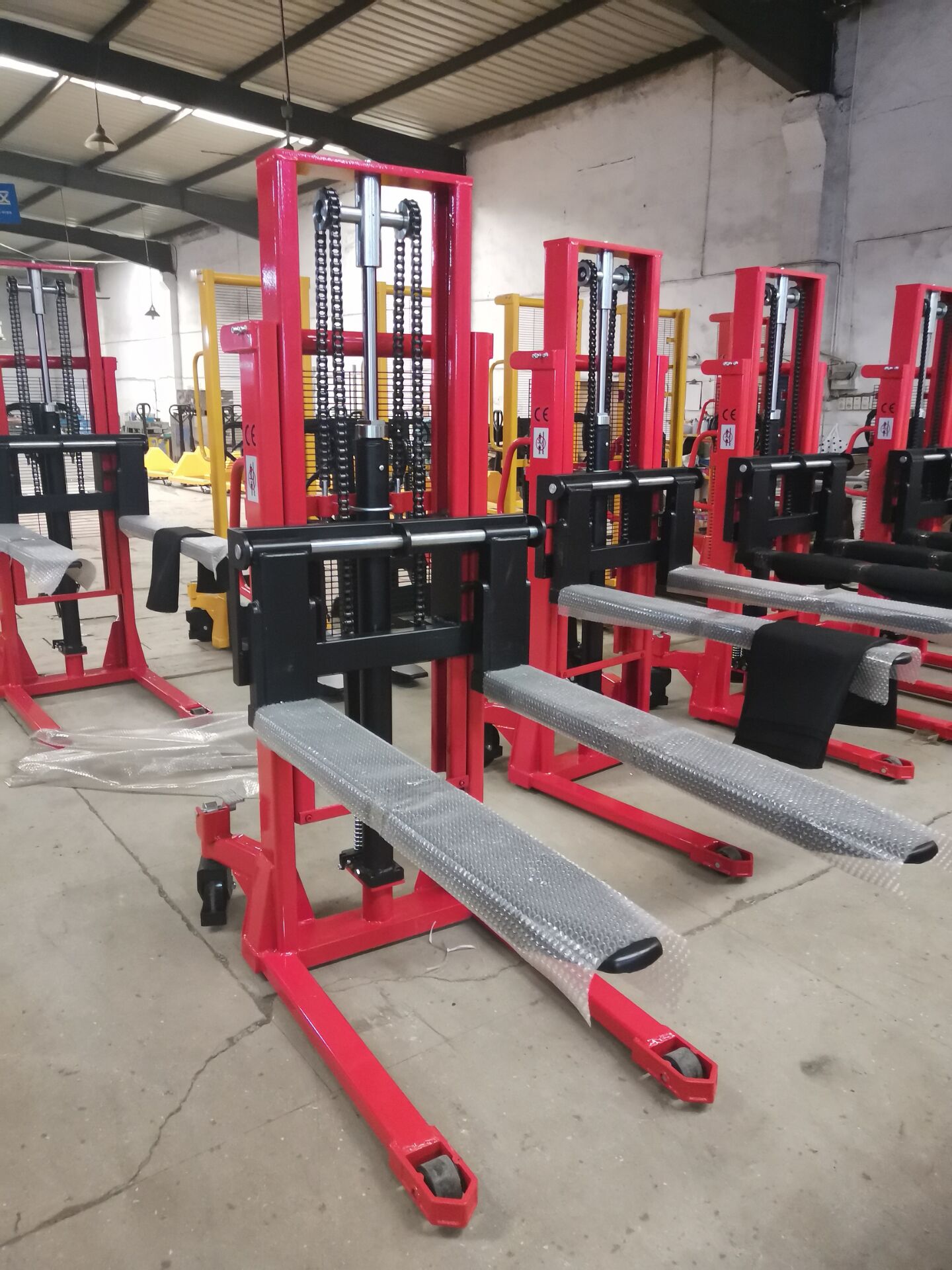

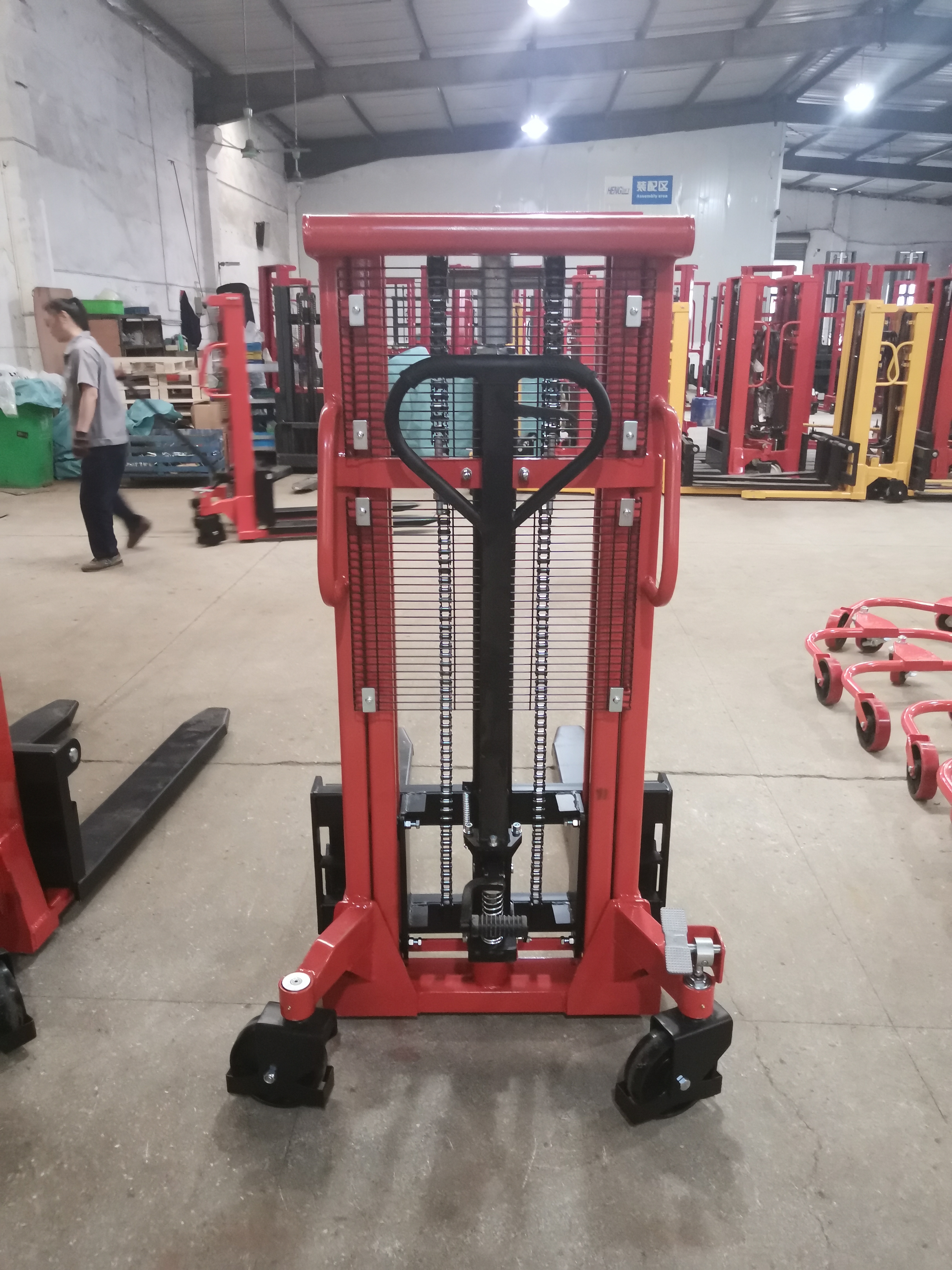

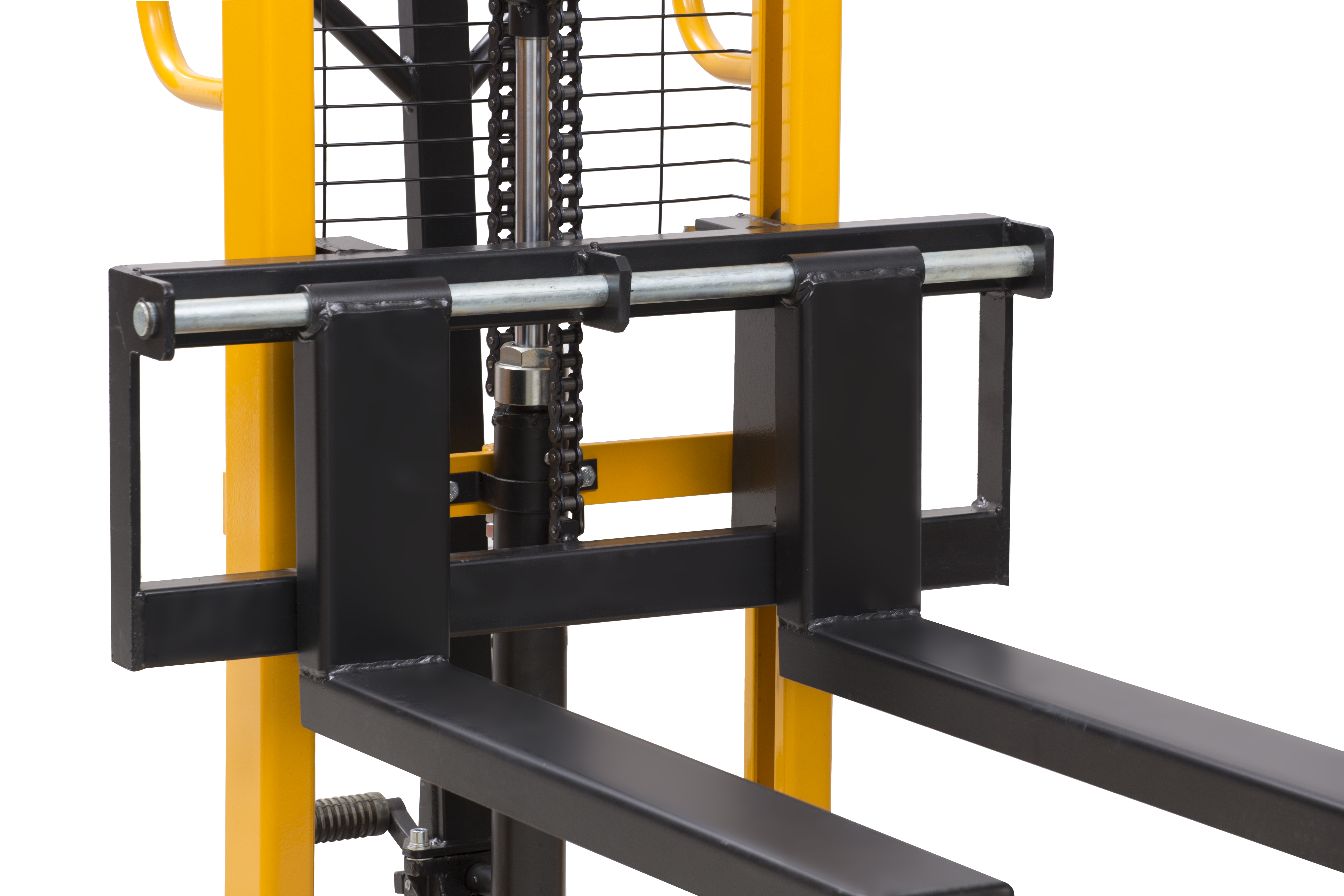

5.Fork with adjustable nut ,it can easy to adjust the fork height.
6.Wheel frame equipped with grease ftting design,It will help do routine maintenance for bearing.

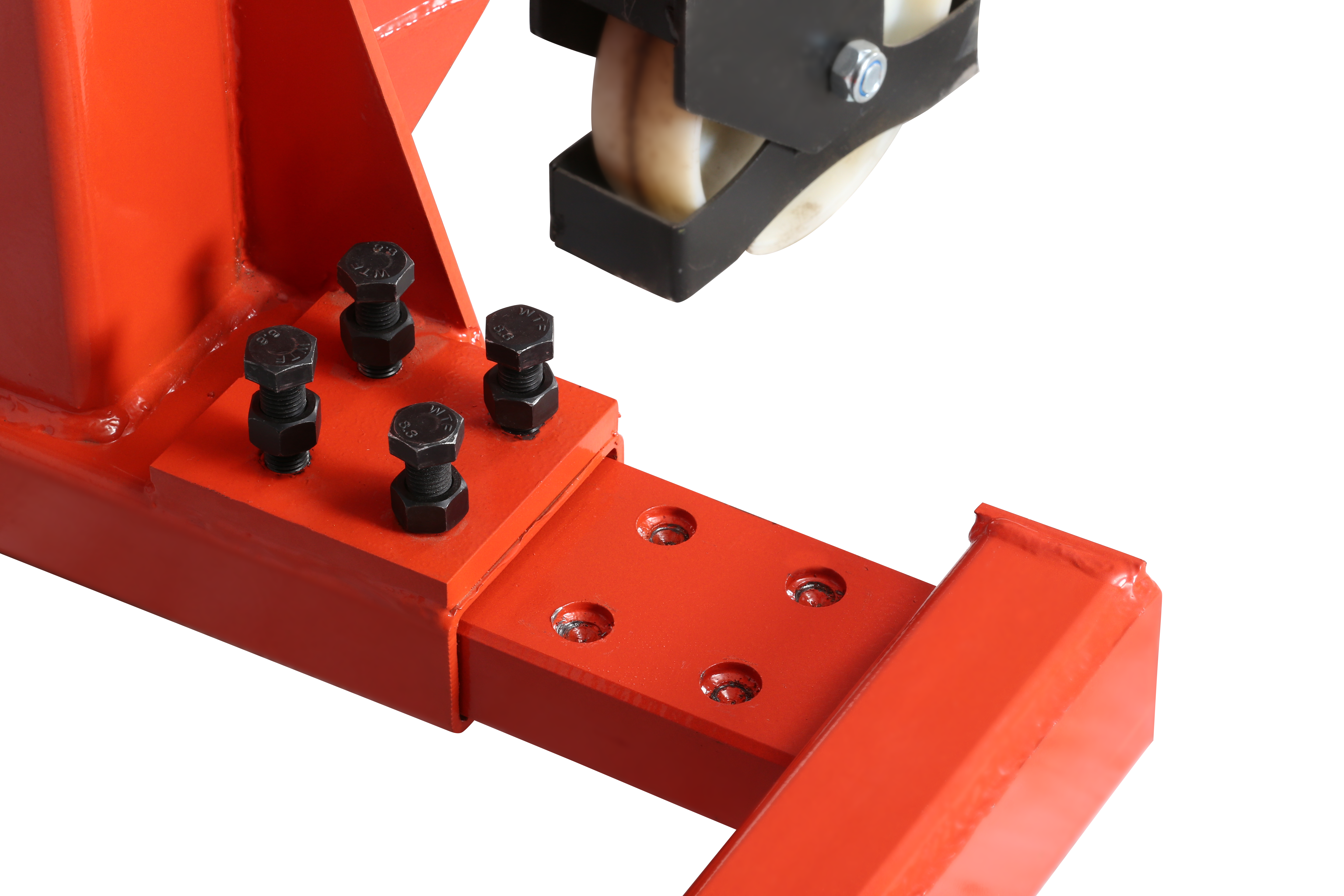

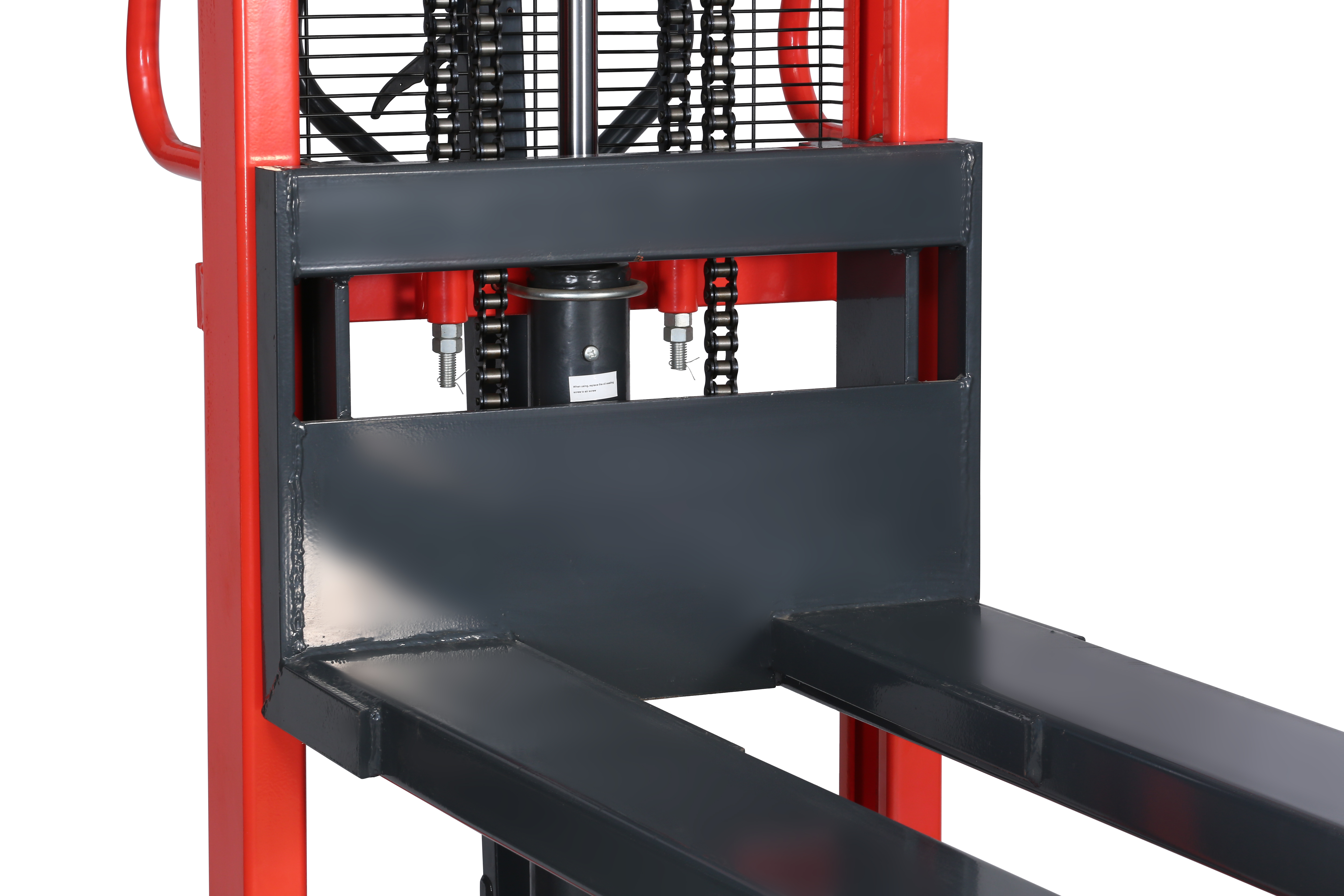

7.There are too many kinds of Fork types,Fixed Fork, Adjusting fork,also with the adjusting wide leg or Fixed wide leg.
|
Detailed images
|
Application Scenarios
Our Manual Pallet Stacker is widely utilized in:
Retail Backrooms: Organizing inventory on high shelves.
Small Workshops: Moving heavy molds and raw materials.
Logistics Points: Loading and unloading light-duty delivery vans.
Pharmaceutical Cleanrooms: (Stainless steel customized versions available).
|
Maintenance & Global Shipping
Zero-Maintenance Design: No batteries, no motors, and no sensors. Only periodic lubrication of the chain and wheels is required.
Wheel Options: Choose between Nylon (hard floors, easy roll) or Polyurethane (PU) (quiet operation, protects delicate floors).
Packaging: Securely packed in steel-reinforced wooden crates to prevent transit damage.
|
FAQ
Q: Can this Manual Stacker lift a standard US/Euro pallet?
A: Yes. Our adjustable fork design allows you to handle various pallet widths. However, for "closed-bottom" pallets (with bottom boards), we recommend our Straddle Leg Manual Stacker version.
Q: What is the lead time for bulk wholesale orders?
A: Standard models are in stock and can ship within 7 days. Customized orders (OEM colors or special lift heights) typically take 15-20 days.
Q: Is the lifting speed controllable?
A: Absolutely. The manual release valve allows for a precise, "stepless" lowering speed, ensuring fragile goods are landed softly.

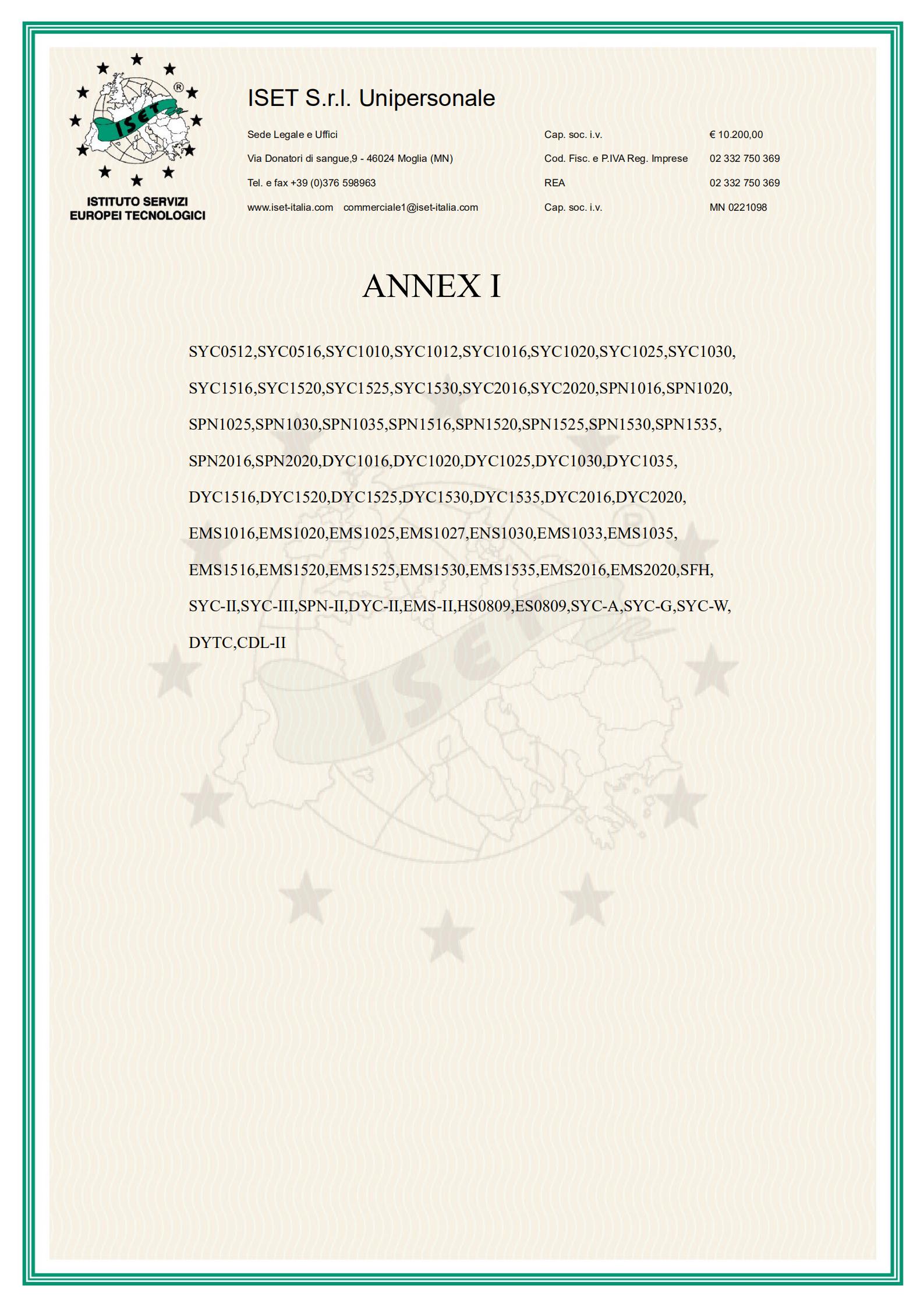

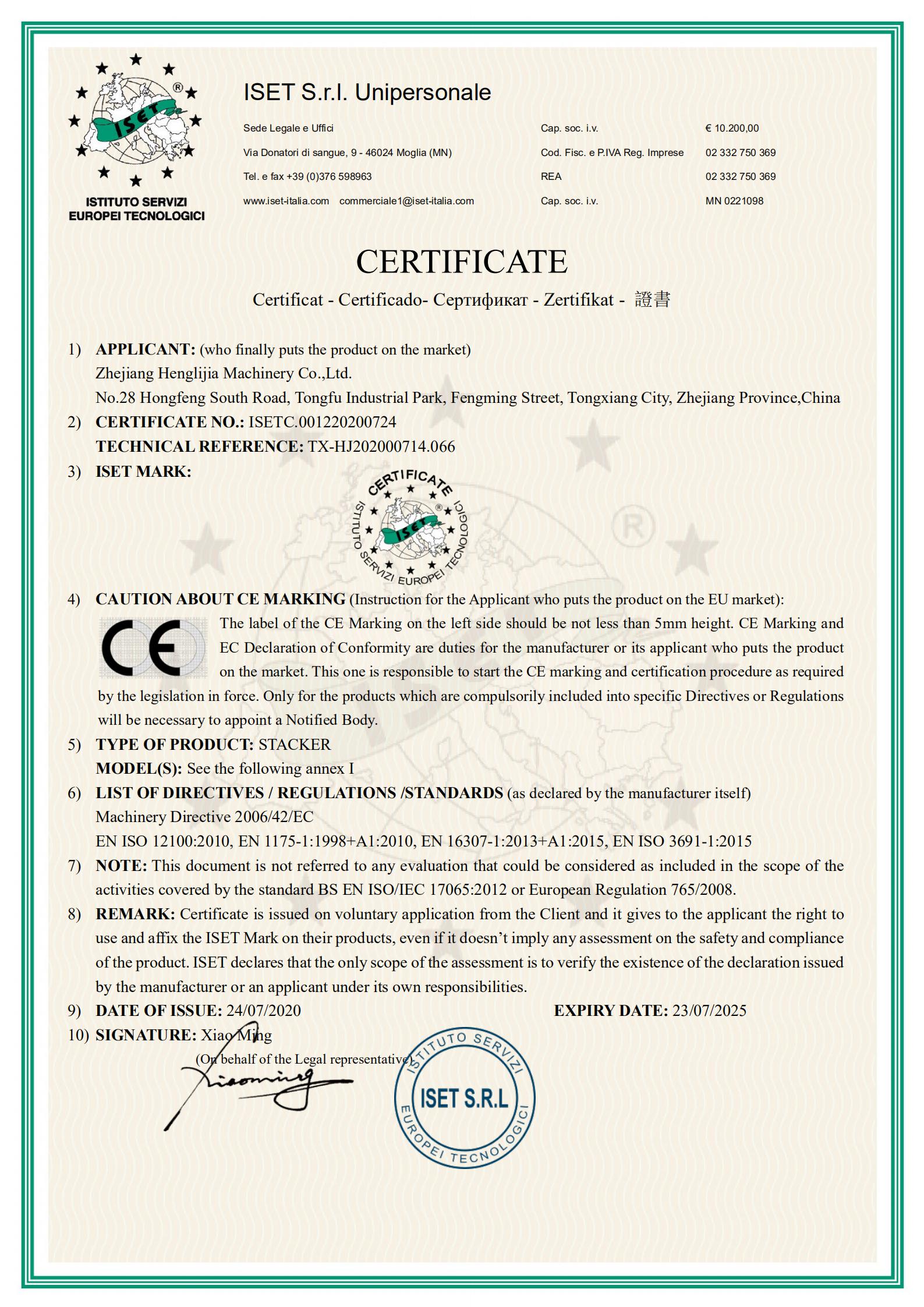

Certificate
Need a custom quote or a technical drawing?
Click the "Inquiry" button now to receive our 2026 Product Catalog and Wholesale Pricing.
.
