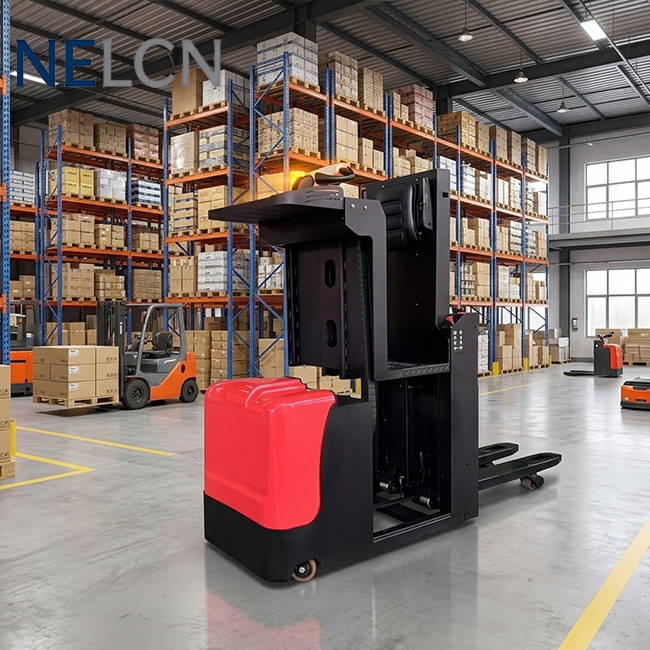

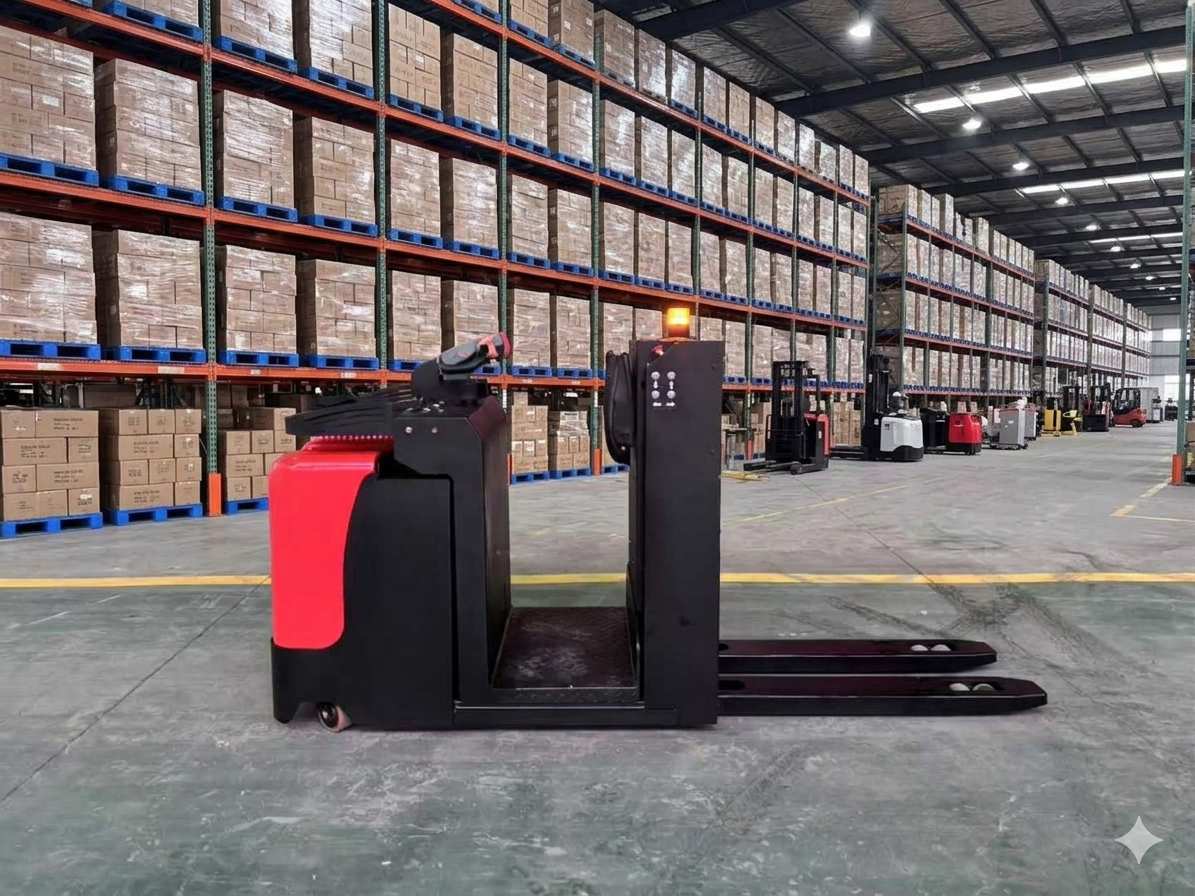

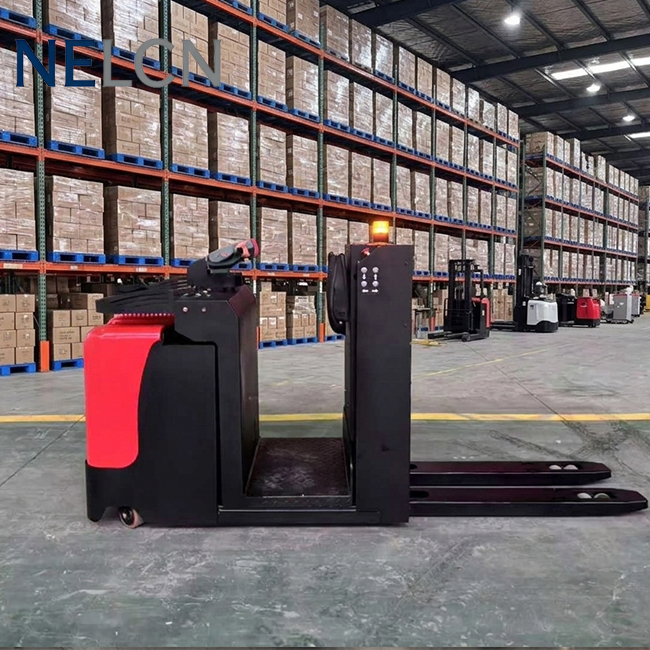

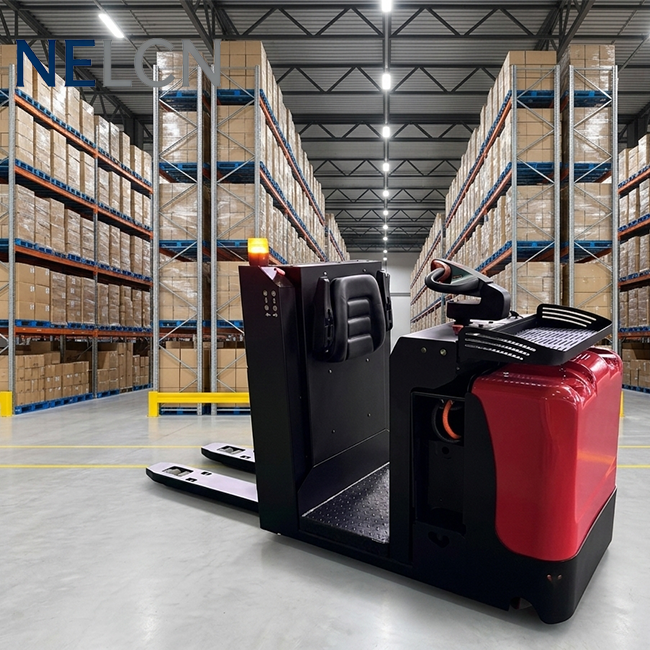

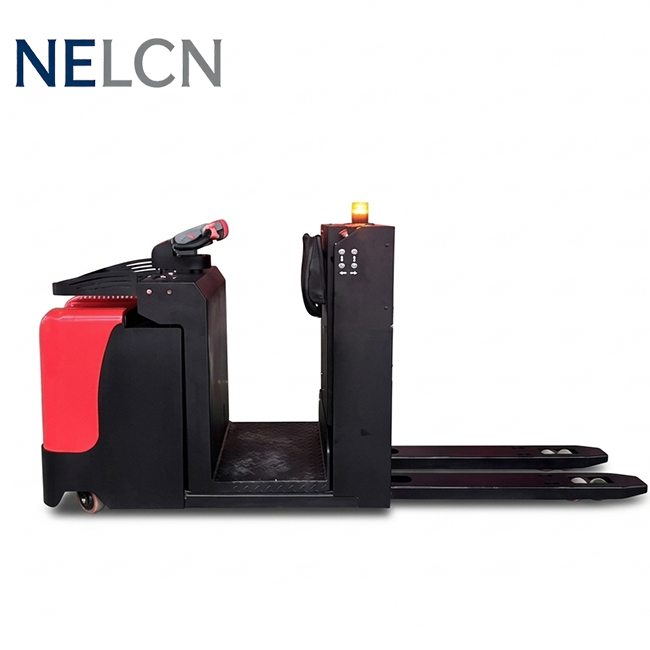

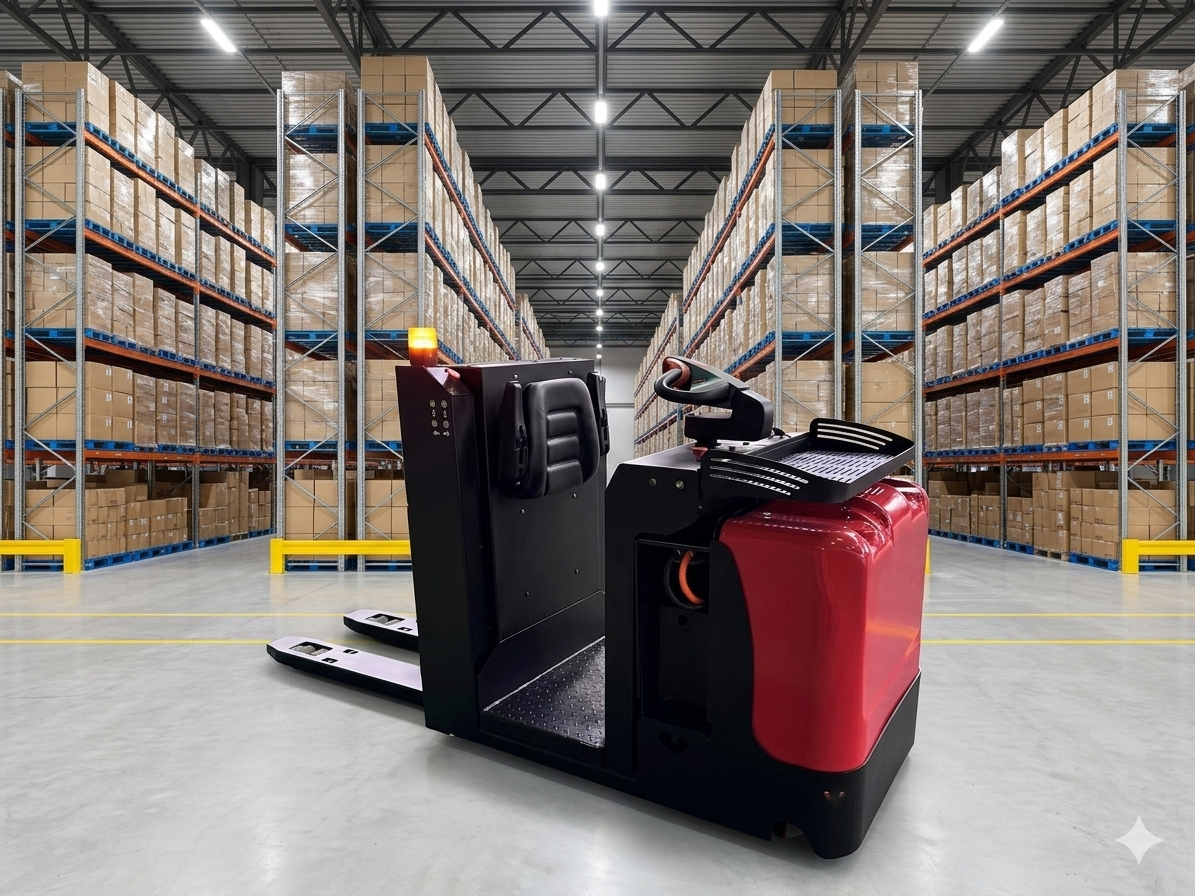

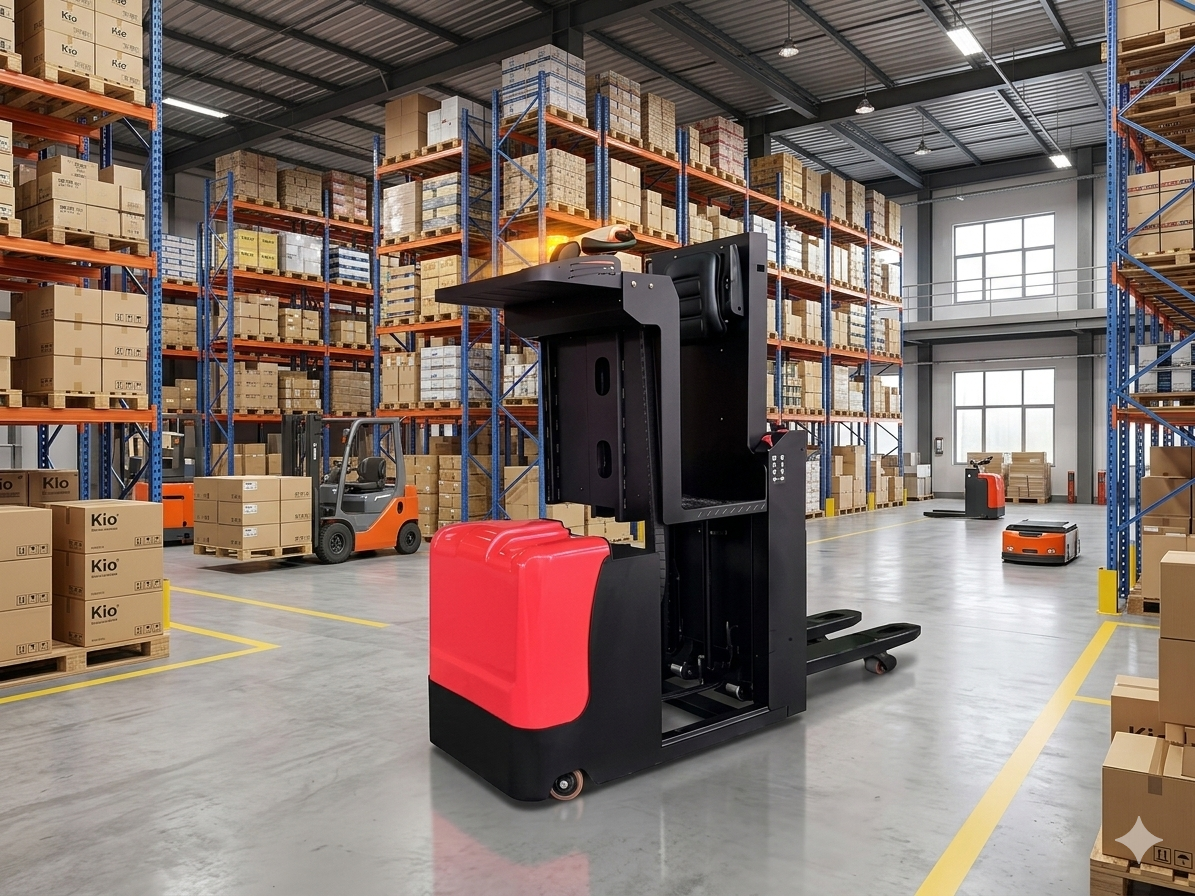

High Performance 2.0T/2.5T Low Level Order Picker – Electric Order Selector for Fast-Paced Logistics
Heavy Duty Electric Order Picker with AC Drive System | Efficient Horizontal Picking Solutions

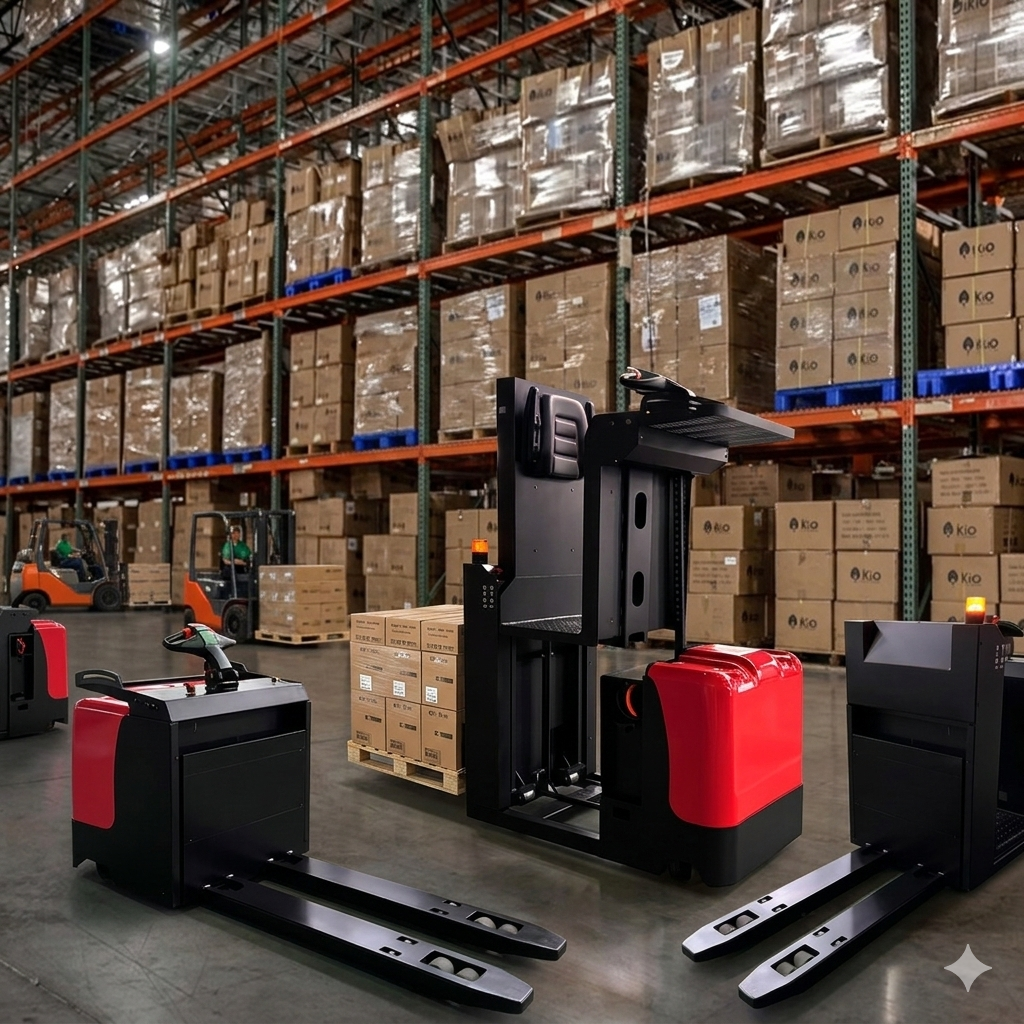

Our Low Level Order Picker is the ultimate solution for high-frequency, horizontal order picking in large-scale warehouses and distribution centers. Designed with ergonomics and productivity in mind, it bridges the gap between manual labor and heavy machinery, ensuring your operators move faster and pick smarter.
| Feature | Benefit |
| AC Drive System | Maintenance-free, powerful acceleration, and precise speed control. |

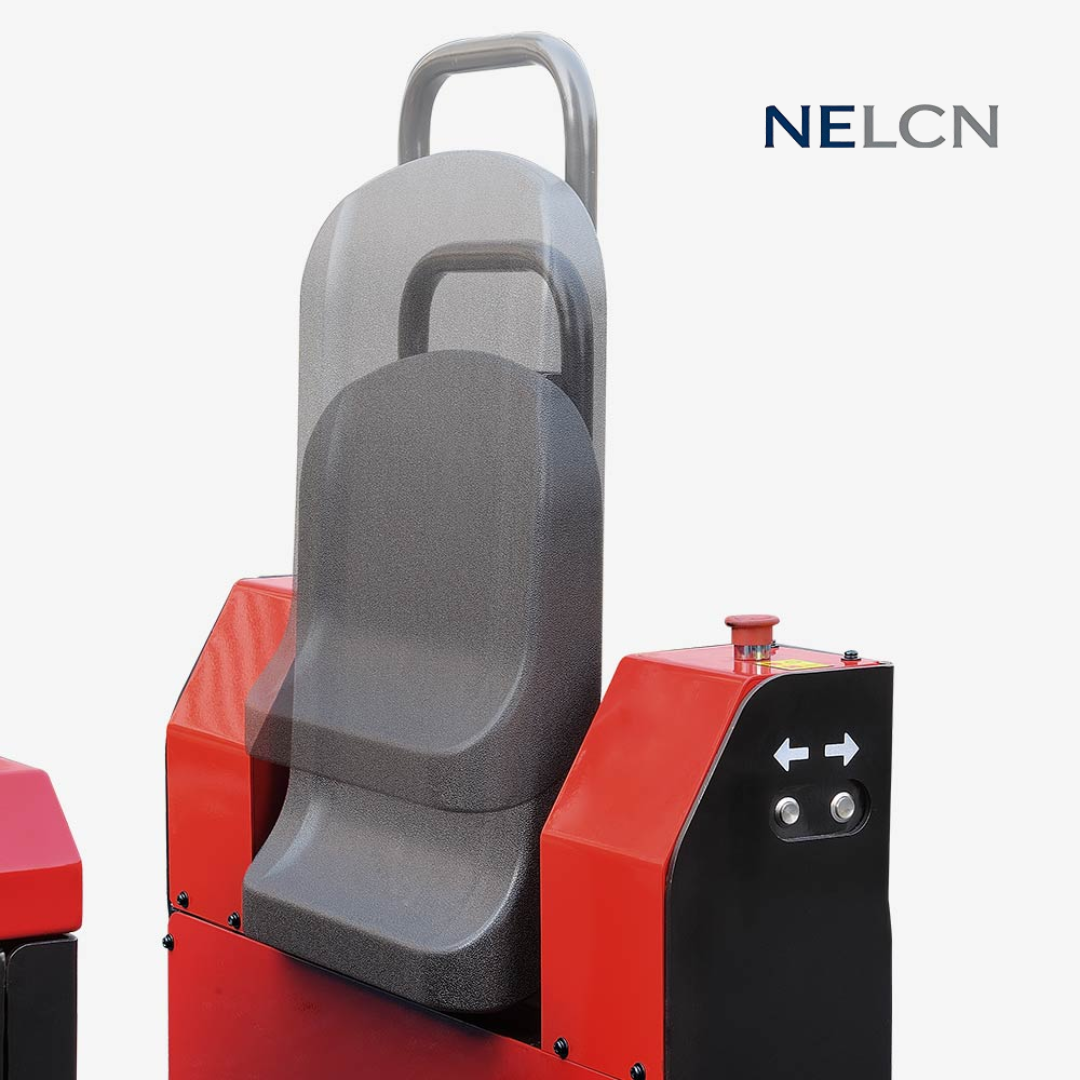

| Ergonomic Backrest | Reduces operator fatigue during long shifts for better health and output. |

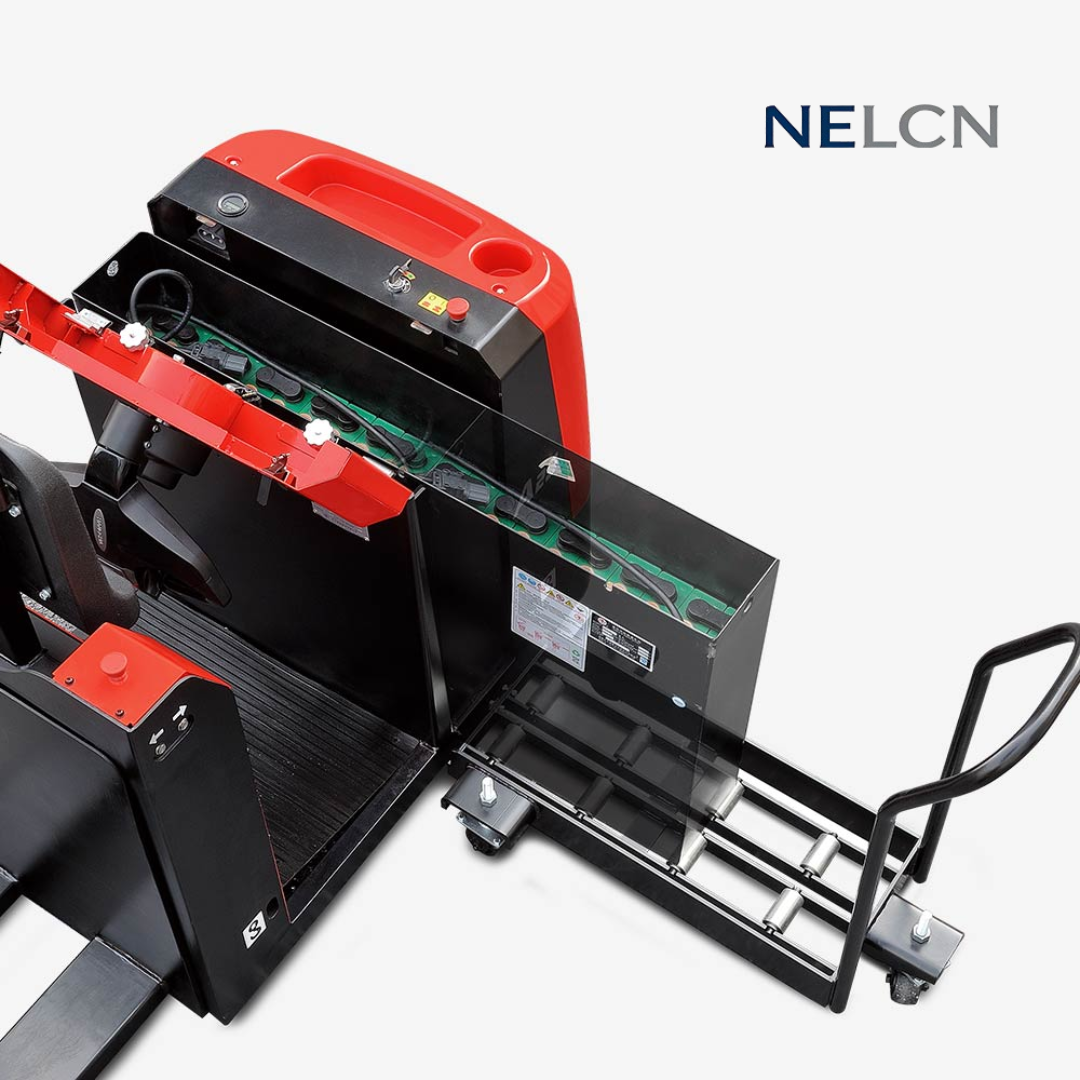

| Side-Battery Change | Supports multi-shift operations with quick and easy battery swaps. |
| Intuitive Control Handle | One-handed operation for both driving and lifting, suitable for all skill levels. |
Here is a standard spec table for a typical 2.0-ton model:
Model: EOP-20 Series
Lifting height:120-235mm
Load Capacity: 2000kg / 2500kg
Max Travel Speed (Laden/Unladen): 8 / 11 km/h
Battery Voltage/Capacity: 24V / 210-360Ah，AC DRIVE
Fork Dimensions: 1150mm (Standard) / Customizable for double pallets
Turning Radius: 2150mm (approx.)
Option：24v280ah lead-acid battery
Optional lithium battery
Non-standard OEM
| Model | Unit | CXD20A(Customized) |
| Type of power | Lead-acid battery | |
| Driving type | Stand-on type | |
| Rated load | Q(kg) | 2000 |
| Lifting height | h3(mm) | 235 |
| Overall length | L0(mm) | 3095 |
| Overall width | b1(mm) | 850 |
| Fork dimensions | s/e/l(mm) | 70(80)/210/1700 |
| Outside width of forks | b3(mm) | 1050 |
| Height of rear tail plateoff the ground | m(mm) | 50 |
| Height of fork off the ground(min) | h5(mm) | 120 |
| The height of the strobe warning light off the ground | h2(mm) | 1620 |
| Height of operating handle(max/min) | h1(mm) | 1580/1190 |
| Battery voltage/capacity | V/Ah | 24/210(Battery) |
| Weight of battery | kg | 190 |
| Vehicle weight(including battery) | kg | 1220 |
| Driving motor power | kw | 1.6 |
| Lifting motor power | kw | 0.8 |
| Tire | Polyurethane | |
| Dimensions of drive wheel | mm | φ230×75 |
| Dimensions of bear wheel | mm | φ110*100 |
| Dimensions of balance wheel | mm | φ130x55 |
| Number of wheels (front/back)(x=drive wheel) | mm | 4/2-1x |
| Front wheel track | b2(mm) | 840 |
| Rear wheel track | b4(mm) | 645 |
| Wheelbase | Y(mm) | 2570 |
| Load Center | C(mm) | 850 |
| Front Overhang | X(mm) | 342 |
| Turn radius | Wa(mm) | 2775 |
| Stacking channel width,pallet 1700X1200(1700 vertical) | Ast(mm) | 3670 |
| Full load axe load,drive side/bear side | kg | 1245/1795 |
| No load axe load,drive side/bear side | kg | 855/365 |
| Driving speed,full load/no load | km/h | 4.0/5.0 |
| Lifting speed,full load/no load | mm/s | 25/30 |
| Descent speed,full load/no load | mm/s | 29/16 |
| Maximum climbing,full load/no load | % | 3.5/8 |
| Braking type | Electromagnetic brake | |
| Control mode | Mosfet control | |
| Vehicle Noise | dB(A) | ≤70 |
Detailed Advantages
Equipped with a high-torque AC motor, this picker provides smooth transitions and rapid travel speeds. The long fork design allows for double pallet handling, effectively doubling the picking efficiency per trip.
Wide-angle view,high-strength shock absorption mast

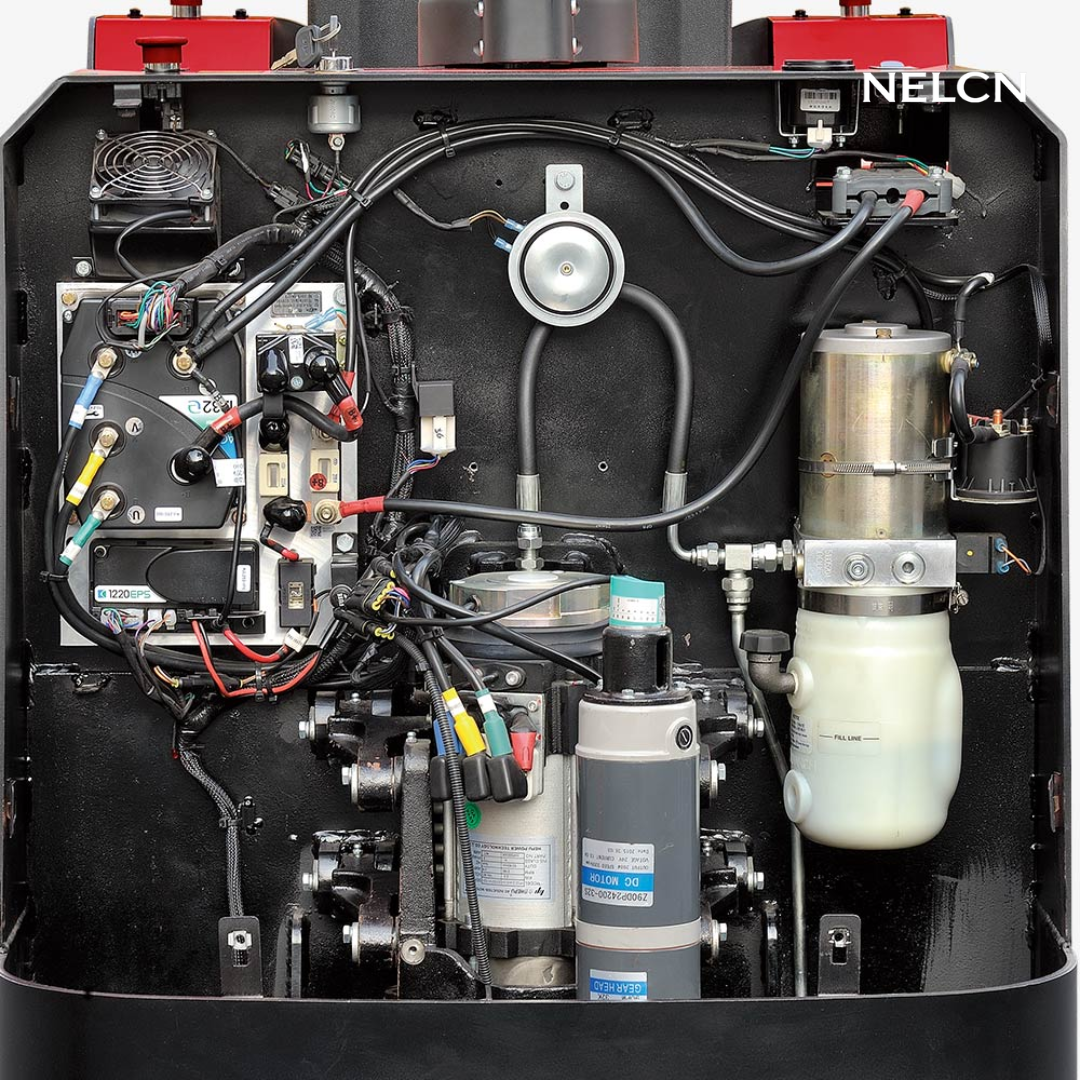

USA Curtis brand drive control system
Vertical Drive system
Electronic steering,portability,mute
Integrated low noise hydraulic pump and valve
Electromagnetic regenerative braking system
Body shock absorption system
Automatic Speed Reduction: Automatically slows down during turns to prevent tipping.
Anti-Slip Platform: High-grip floor mat ensures operator stability even in damp conditions.
Emergency Disconnect: Easily accessible button to cut power instantly in case of an anomaly.
The spacious operator platform allows for easy entry and exit from both sides. The low step-in height (only 130mm-150mm) significantly reduces the physical strain on the operator's knees and back.

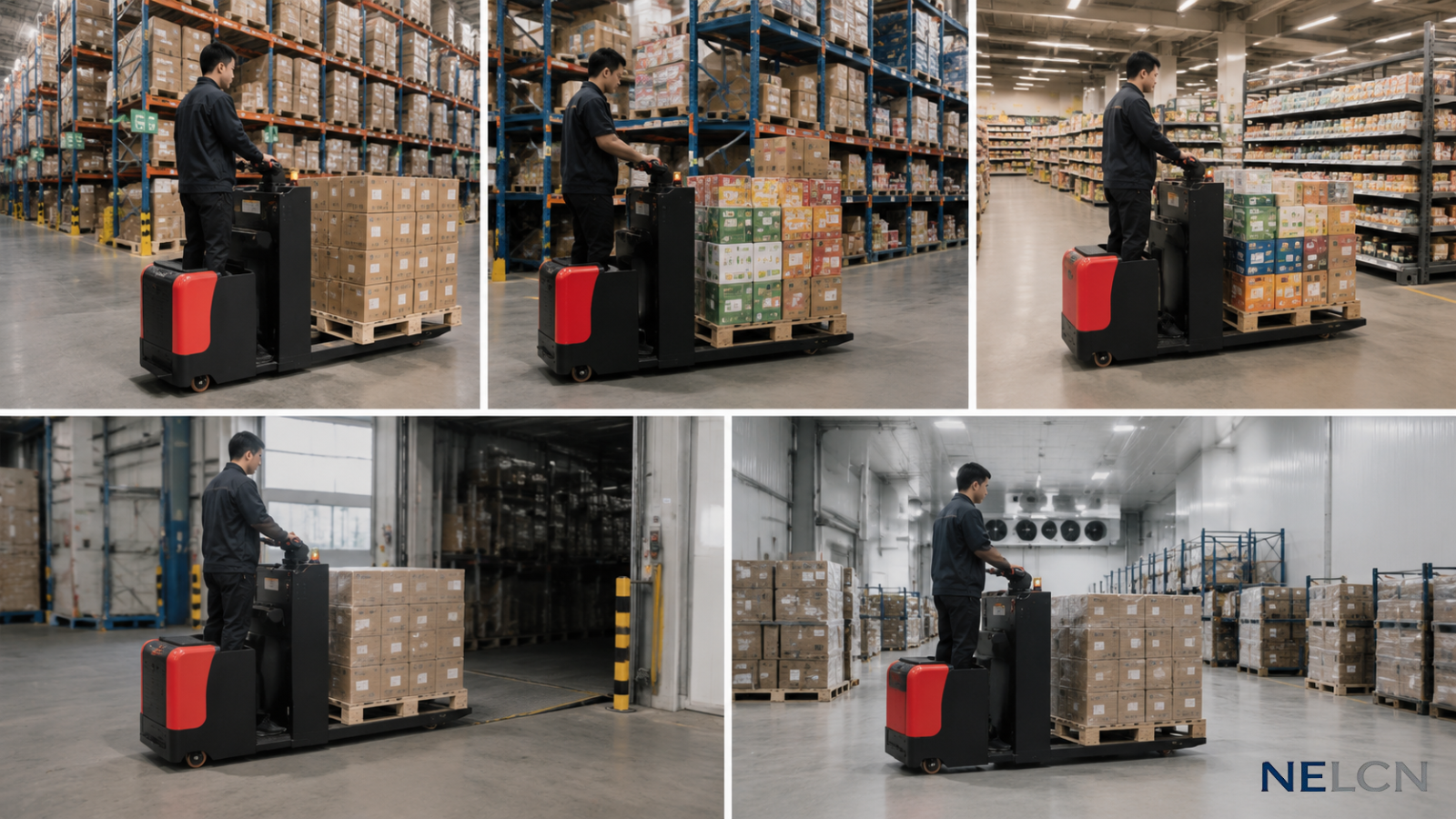

E-commerce Fulfillment: High-speed picking for diverse SKUs.
Cold Storage: Optional cold-store configuration (up to -25°C).
Retail Distribution: Ideal for supermarkets and FMCG warehouses.
Parts Manufacturing: Efficient transport of components across the factory floor.
Customization: We offer fork length and width modifications to suit your specific pallets.
After-Sales Support: 12-month warranty and 24/7 technical assistance.
Quality Certified: Full compliance with CE and ISO9001 standards.
Q: Can it be used for multi-shift work?
A: Yes, with our side-extraction battery design, you can swap batteries in under 5 minutes.
Q: Is the steering electronic?
A: Yes, we use EPS (Electric Power Steering) to make maneuvering effortless even at full load.
