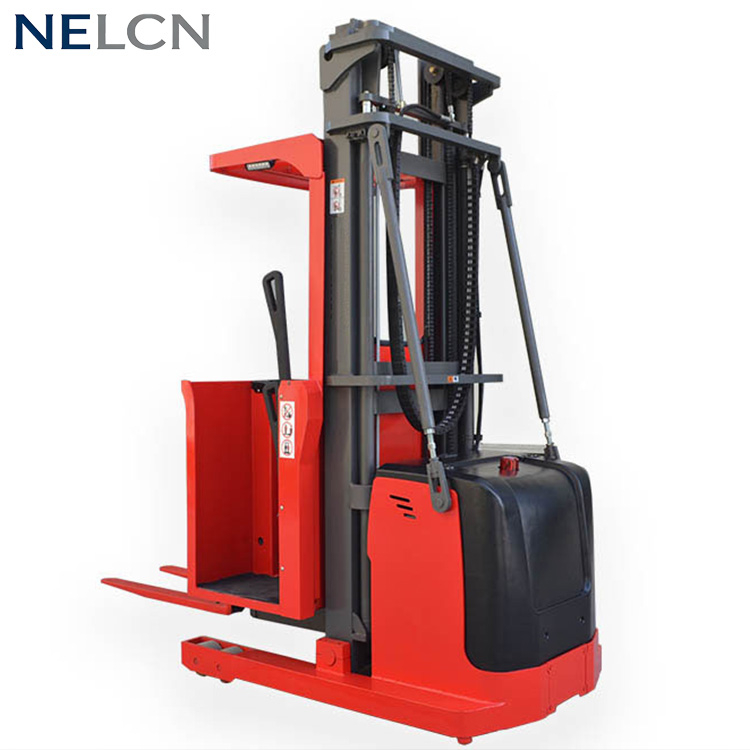

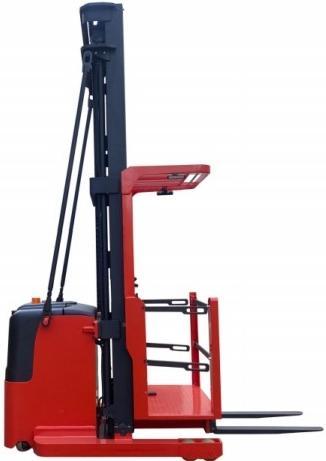

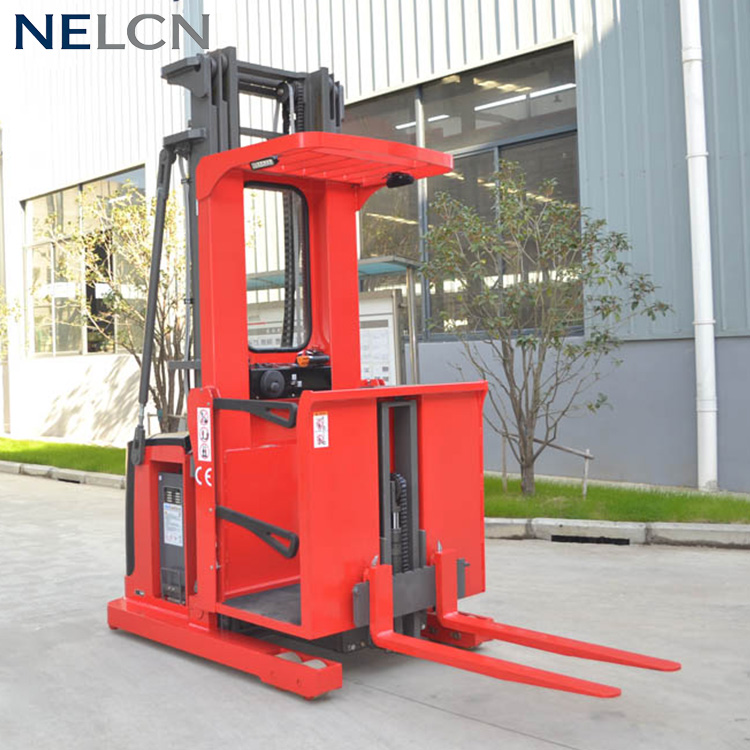

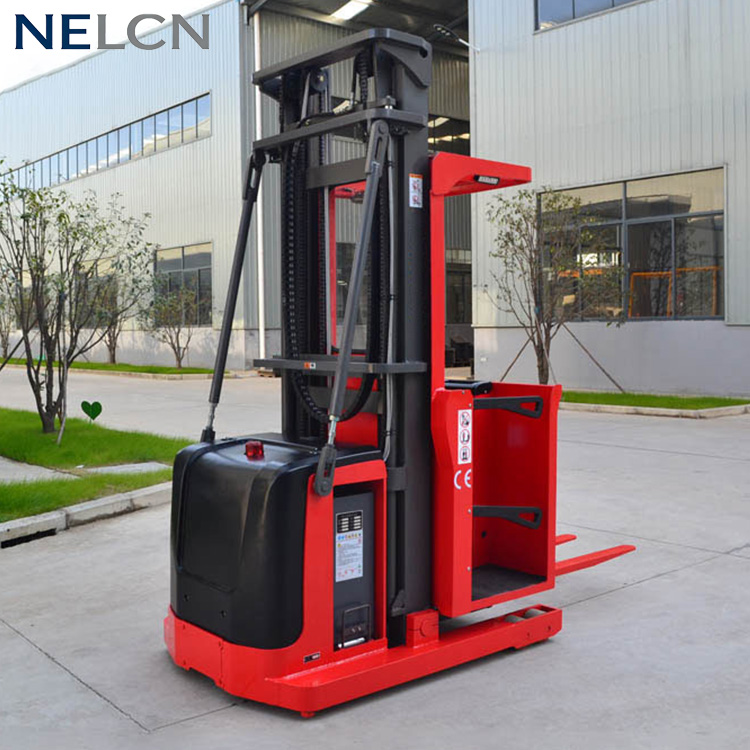

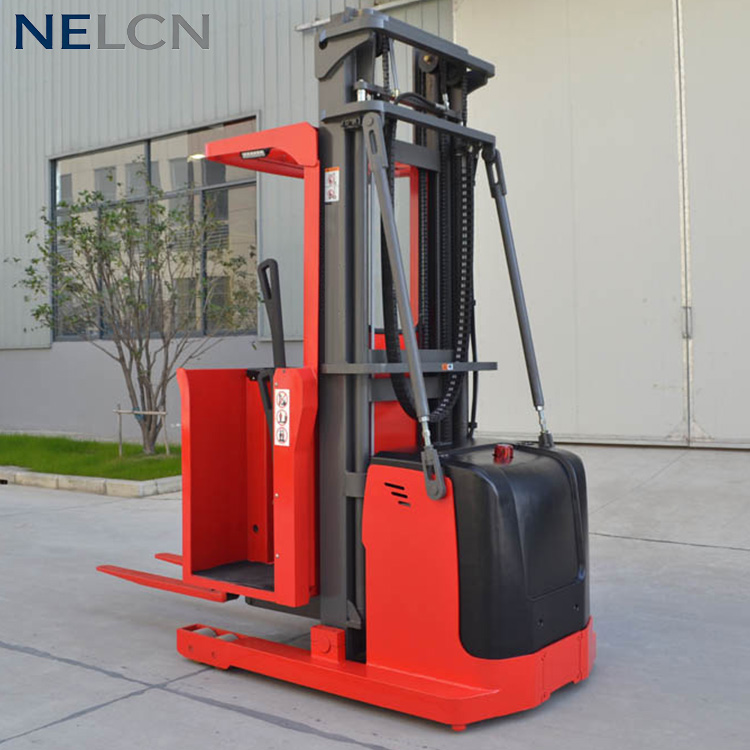

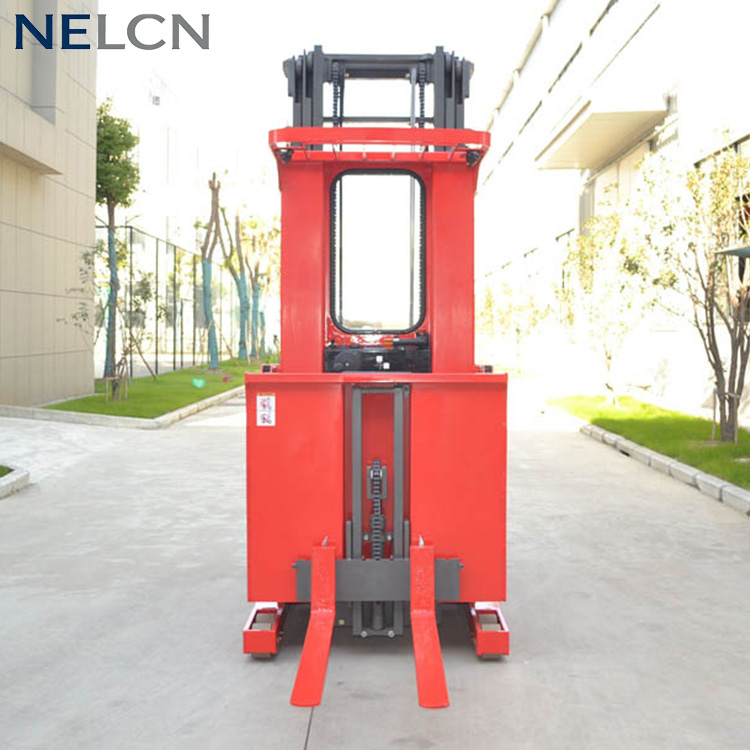

Electric order pickers

self-lifting or other-lifting
Rated load:2000kg---1.5T
Lifting height:3000-9000mm
AC DRIVE

Quantity:
Availability:





Inquire

Products Detail

FULL ELECTRIC ORDER PICKERS | HIGH-EFFICIENCY WAREHOUSE PICKING SOLUTIONS

Product Description

Our electric order pickers are engineered for safe, fast, and ergonomic vertical order picking in modern warehouses, distribution centers, factories, and retail logistics. Built with heavy-duty steel structure, stable AC drive system, and comprehensive safety features, they maximize picking efficiency while reducing operator fatigue. Ideal for narrow aisles and high-bay storage.

Option：

1.Forks lift freely

2.Optional lithium battery

3.Fixture

4.Optional Open Axle

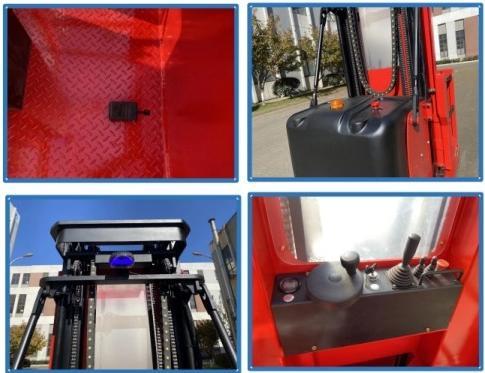

Advantage

Wide-angle view,high-strength shock absorption mast
USA Curtis brand drive control system
South-central transmission
Electronic steering,portability,mute
Integrated low noise hydraulic pump,electromagnetic
hydraulic valve
Electromagnetic regenerative braking system
Lifting limit,integrated thumb switch
Body shock absorption system

Our Service

1.OEM & ODM accepted

2.Full technical documentation & operation manual

3.Online video support for installation & maintenance

4.Spare parts supply worldwide

5.Professional after-sales team

Safety

1.Drive stepless speed regulation

2.Controller multiple automatic protection system

3.Automatic deceleration in corners

4.Emergency brake

Key Features

High-Efficiency Electric Drive System

Powerful AC drive motor for smooth travel & lifting
Maintenance-free, low energy consumption
Consistent performance in long shifts

Ergonomic & Safe Operation

Anti-slip standing platform with shock absorption
Self-locking safety gate & emergency stop
Overload, tilt, and over-height protection
Clear mast visibility for precise control

Compact & Maneuverable

Small turning radius for narrow aisles
Easy entry & exit low-step platform
Stable lifting & stable driving at height

Reliable Power

24V large-capacity battery (lead-acid or lithium-ion optional)
Long working hours, fast charging
Battery low-power alert

Durable Construction

High-strength welded steel frame
Wear-resistant PU non-marking wheels
Stable hydraulic lifting system
Long service life, easy maintenance

Applications

Warehouse & logistics centers
E-commerce fulfillment centers
Factory production lines
Retail & supermarket storage
Electronics, apparel, food & beverage industries
Narrow aisle & high-bay racking systems

Product parameter

Model		CXD15-60	CXD15-75
Type of power		Lead-acid battery
Driving type		Stand-on type
Rated load	Q(kg)	1500	1500
Overall length	L1(mm)	2770	3015
Overall width	b1/b2	900/1340	900/1340
Fork dimensions	t/w/l(mm)	920/122/40	1070/122/40
Outside width of forks	b5(mm)	680	260-700
Inside width of support legs	b4(mm)	1082	1082
Mast closed height	h1(mm)	2890	3330
Free lifting height	h2(mm)	/	610
Max height of mast during lifting(including load backrest)	h4 (mm)	8255	9557
Minimum height of forks off the ground	h8 (mm)	50	50
Height of overhead guard	h6 (mm)	2305	2297
Minimum height of operating table	h5(mm)	248	240
Maximum height of forks off the ground	h3(mm)	6000	7870
Maximum height of operating table	h7(mm)	6198	7500
Height of vehicle off the ground	m(mm)	50	50
Battery,voltage/rated capacity	V/Ah	24/420	24/420
Weight of battery	kg	360	360
Vehicle weight(including battery)	kg	3800	4080
Driving Motor Power(S2-60MIN)	kw	2.5(AC)	2.5(AC)
Lifting motor power	kw	3	3
Tire		Polyurethane
Tire dimensions,drive wheel	mm	φ230×75	φ230×75
Tire dimensions,bear wheel	mm	φ150x90	φ150×90
Number of wheels,front/rear(x=drive wheel)		4/2-1x	4/2-1x
Wheel track,drive Side	(mm)	685	685
Wheel track,bear Side	(mm)	1212	1212
Wheelbase	y(mm)	1490	1566
Load center	C(mm)	500	500
Front overhang	x(mm)	191	212
Turn radius	Wa(mm)	1695	1770
Stacking channel width(pallet 1000x1200)1200 cross-fork direction	Ast(mm)	3375	3470
Stacking channel width (pallet 800x1200)1200 along fork direction	Ast(mm)	3345	3440
Full-load axle load,drive side/bear side	kg	1545/3755	1660/3920
No-load axle load,drive side/bear side	kg	2245/1555	2340/1740
Driving speed,full load/no load	km/h	4/5	4/5
Lifting speed,full load/no load	mm/s	100/120	100/120
Descent speed,full load/no load	mm/s	140/110	140/110
Maximum climbing,full/no load (S2-5MIN)	%	2/5	2/5
Braking type		Electromagnetic brake
Steering type		Electronic steering
Battery replacement method		Lifting type
