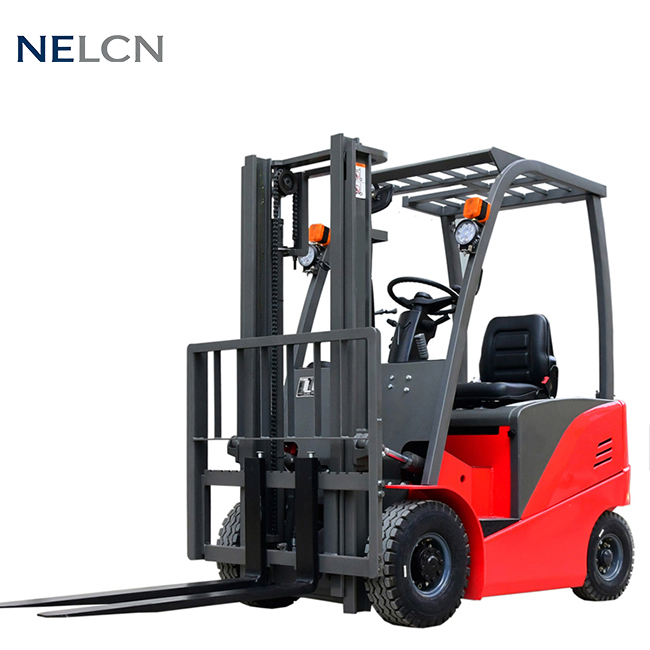

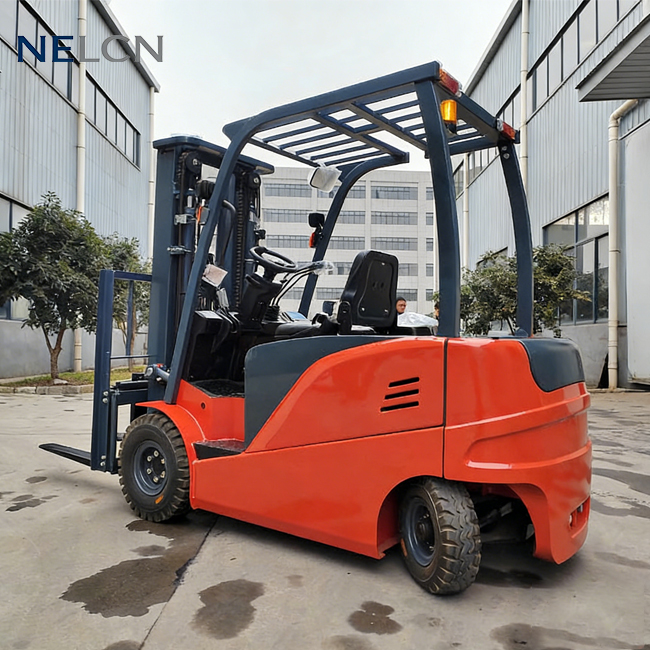

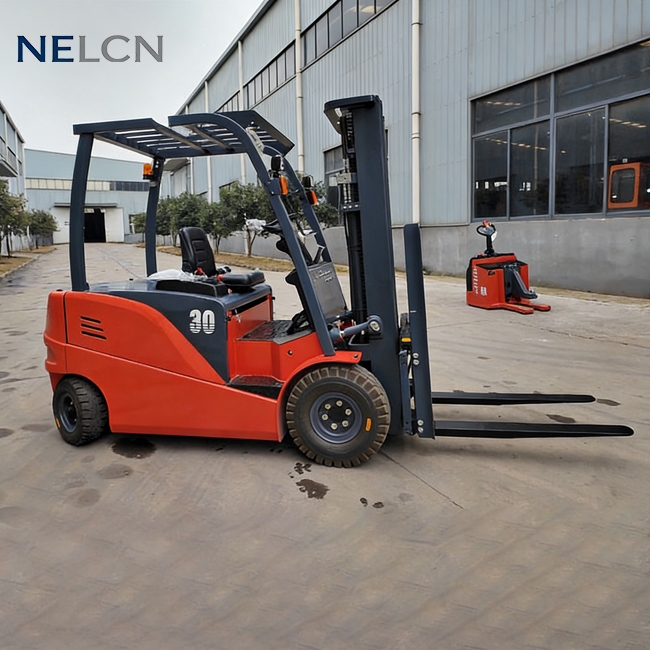

The electric forklift has become an essential material handling solution for modern warehouses, factories, and logistics centers. Noelift provides advanced four-wheel electric forklifts with a four-fulcrum design, supporting loads from 1.5 to 2.5 tonnes. With various capacity batteries, they can operate continuously from 2 to 8 hours per day while delivering zero exhaust emissions and extremely low noise.
Our electric counterbalance forklift is designed for maximum efficiency and operator comfort. Its hydraulic, braking, acceleration, and ESC systems are electronically controlled, reducing labor intensity while improving safety and precision. For narrow warehouse environments, Noelift also provides the Aisle Master electric forklift, engineered to maximize space utilization and productivity in tight aisles.
For businesses looking for sustainable and cost-effective solutions, Noelift offers the latest lithium-ion forklift technology, ensuring faster charging, longer life cycles, and minimal maintenance compared to traditional lead-acid batteries.
Warehousing & Logistics: Efficient pallet handling and stacking
Manufacturing: Smooth material flow across production lines
Retail & Distribution: Space-saving solutions with the aisle master electric forklift
Construction & Ports: Durable heavy-load performance
With extensive expertise in forklift design and production, Noelift delivers both standard and non-standard electric forklifts tailored to different site conditions and working environments. Whether you need a compact electric counterbalance forklift for indoor use, or a lithium-ion forklift for high-intensity applications, Noelift provides the right solution for your business.
The new frame design makes the forklift compact, strong, and stable, suitable for various industrial environments.
The drive motor adopts a parallel arrangement while the battery is placed at the bottom of the frame, ensuring excellent balance and safe operation.
Our wide-field mast design improves operator visibility. The enlarged fork frame gear opening enhances safety and precision during material handling.
Equipped with a large LED display, the forklift provides intuitive readings, real-time data, and a user-friendly interface.
Noelift uses top-brand motor controllers, contactors, power plugs, emergency switches, and accelerators to guarantee durability and reliability.
The maintenance-free motor eliminates the need for frequent carbon brush replacement, reducing operating costs.
Featuring an AC or permanent magnet synchronous motor, the forklift offers full protection functions, temperature sensors, and improved performance life.
Operators can freely switch between lithium battery and lead-acid systems. The lithium-ion forklift option provides faster charging and higher efficiency for heavy-duty operations.
The side-way battery change system simplifies maintenance, making it suitable for continuous operations under heavy loads.
Discover the advantages of Noelift electric forklifts – eco-friendly, efficient, and built to last.
[Contact Us for Electric Forklift Price & Details]
| Standard | ||||||
| 1.1 | Manufacturer | NEOLIFT | NEOLIFT | NEOLIFT | NEOLIFT | |
| 1.2 | Model | TK15 | TK20 | TK25 | ||
| 1.3 | Power Type | Battery | Battery | Battery | Battery | |
| 1.4 | Operation Type | Driving Style | Driving Style | Driving Style | Driving Style | |
| 1.5 | Rated Capacity | Q(kg) | 1500 | 2000 | 2500 | 2500 |
| 1.6 | Load Center | C(mm) | 500 | 500 | 500 | 500 |
| 1.8 | Front Overhand | x(mm) | 380 | 420 | 425 | 425 |
| 1.9 | Wheelbase | y(mm) | 1380 | 1505 | 1505 | 1700 |
| Weight | ||||||
| 2.1 | Service Weight(incl.battery) | kg | 2900 | 3380 | 3820 | 3600 |
| Wheel | ||||||
| 3.1 | Wheel Types | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
| 3.2 | Load Wheel | mm | 5.00-8 | 18×7-8 | 18×7-8 | 18×7-8 |
| 3.3 | Drive wheel | mm | 6.00-9 | 21×8-9 | 21×8-9 | 21×8-9 |
| 3.5 | Number of wheels,,front/rear(x=drive wheel) | 2x/2 | 2x/2 | 2x/2 | 2x/2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 910 | 950 | 950 | 950 |
| 3.7 | Wheel tread,load side | b11(mm) | 930 | 960 | 960 | 960 |
| Size | ||||||
| 4.1 | Mast tilting | α/β(°) | 6/10 | 6/10 | 6/10 | 6/10 |
| 4.2 | Mast closed height | h1(mm) | 1995 | 1995 | 1995 | 1995 |
| 4.3 | Free lift height | h2(mm) | 135 | 140 | 145 | 145 |
| 4.4 | Lift height | h3(mm) | 3000 | 3000 | 3000 | 3000 |
| 4.5 | Mast extended height with load-backrest | h4(mm) | 4030 | 4030 | 4030 | 4030 |
| 4.7 | Overhead guard height | h6(mm) | 2100 | 2100 | 2100 | 2130 |
| 4.8 | Seat height | h7(mm) | 1090 | 1090 | 1090 | 1120 |
| 4.19 | Overall length | L1(mm) | 3205 | 3410 | 3415 | 3615 |
| 4.20 | Length to fork face | L2(mm) | 2135 | 2340 | 2345 | 2545 |
| 4.21 | Overall width | b1(mm) | 1110 | 1160 | 1160 | 1200 |
| 4.22 | Fork size | l/e/s(mm) | 1070/100/35 | 1070/100/40 | 1070/100/45 | 1070/100/45 |
| 4.23 | Installation level | 2A | 2A | 2A | 2A | |
| 4.24 | Fork carriage width | b3(mm) | 1040 | 1040 | 1040 | 1040 |
| 4.25 | Fork outside width | b5(mm) | 222～1000 | 222～1000 | 222～1000 | 222～1000 |
| 4.31 | Mast ground clearance | m1(mm) | 85 | 85 | 85 | 85 |
| 4.32 | Body ground clearance | m2(mm) | 100 | 100 | 100 | 100 |
| 4.34.1 | Aisle width for pallet 1000*1200 | Ast(mm) | 3580 | 3720 | 3720 | 3920 |
| 4.34.2 | Aisle width for pallet 800*1200 | Ast(mm) | ||||
| 4.35 | Turning radius | Wa(mm) | 2000 | 2100 | 2100 | 2300 |
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warranty, spare parts delivery within one week for free.
Q1: Are you an electric forklift factory?
A1: Yes, we have been a professional manufacturer of electric forklifts for more than 15 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different models. For some standard products, we may have stock and could deliver immediately.
Q3: Is a customized solution available?
A3: Yes, we can provide different customized solutions.
Q4: Can you provide OEM service?
A4: Yes.
In order to provide our customers with logistics handling solutions ranging from 500kg to 100,000kg, Noelift can provide you with an electric pallet truck, pallet stacker, counterbalance stacker, reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counterbalance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, AGV, and other customized types of options. All Noelift products are extensively utilized in the food, pharmaceutical, chemical, home electrical appliance, wool cotton textile, tobacco, electronics, machinery, furniture, and many other industries because of product serialization and standardization.
