COMPANY BACKGROUND
| WAREHOUSE INNOVATION
NOELIFT is a professional manufacturer of material handling equipment,offering high quality forklift trucks.Our products provide the lowest cost of ownership while maximizing space and productivity to benefit our clients.
NOELIFT trucks are tough,versatile and built to last. Designed to withstand heavy-duty use inside and outside,each NOELIFT trucks is manufactured to high standard and honored with ISO9001,CE, SGS certificateand special equipment
manufacturing license.

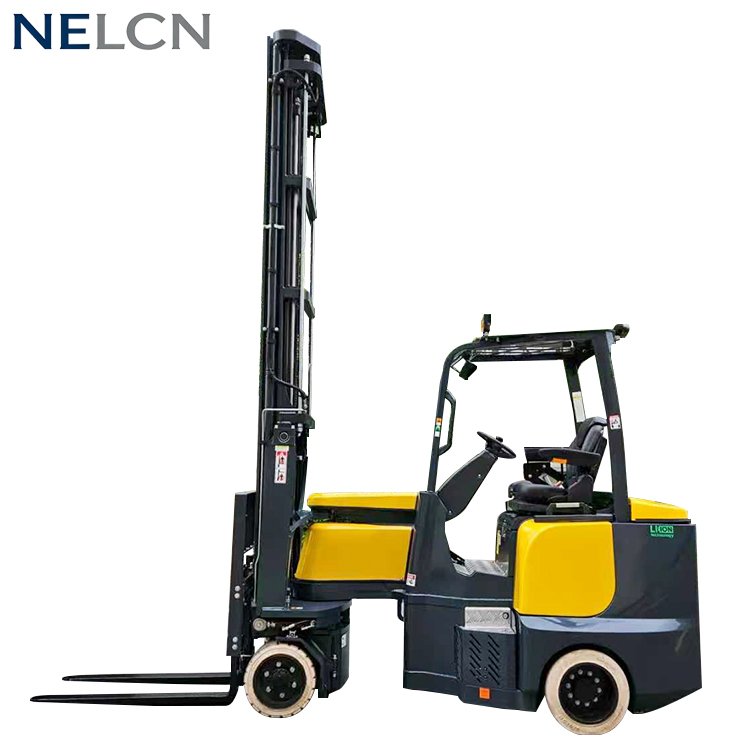

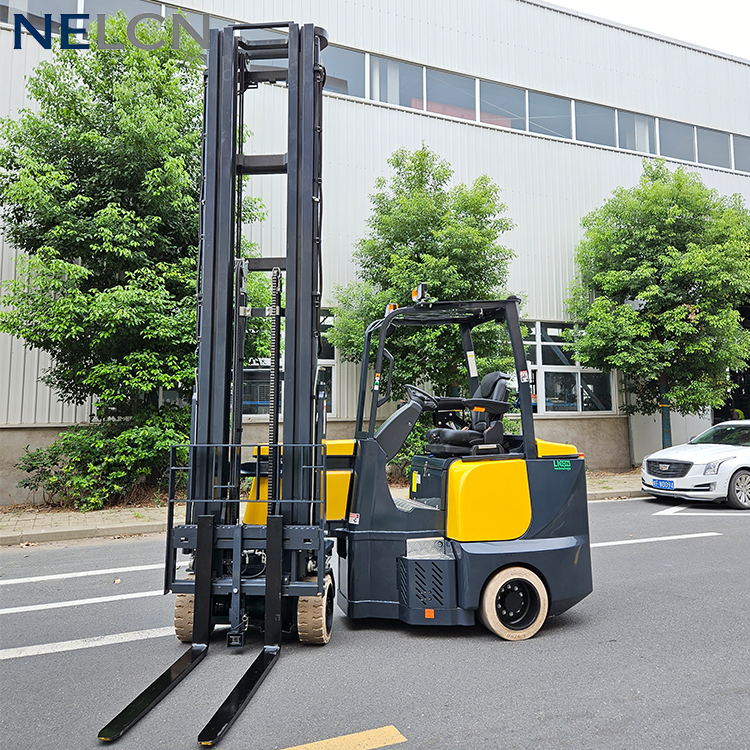

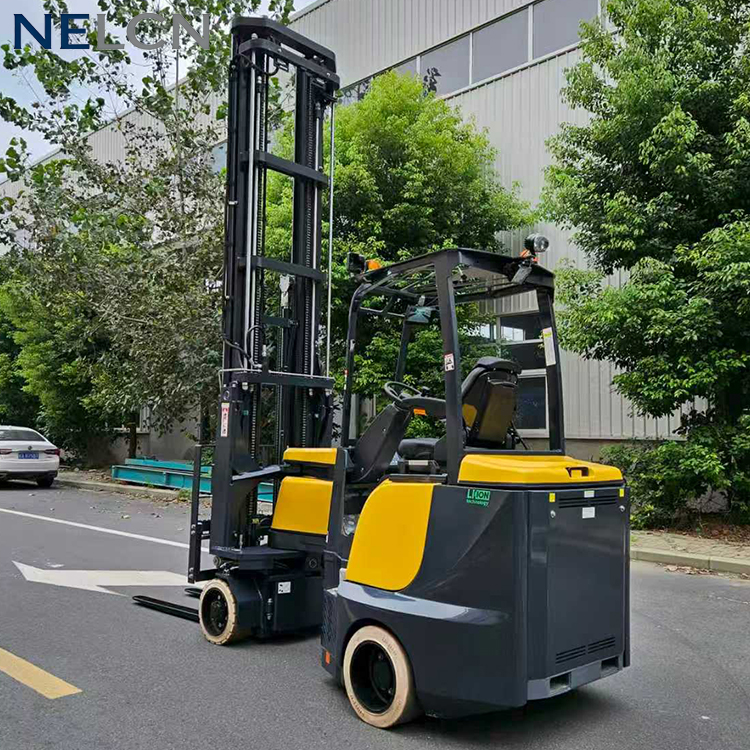

This innovative design brings substantial convenience to customers,including higher lifting height,narrower warehouse access,higher work efficiency,better driving experience and lower operating costs.All the work of counterbalance forklift and reach truck can be done by only one NOELIFT articulated forklift.

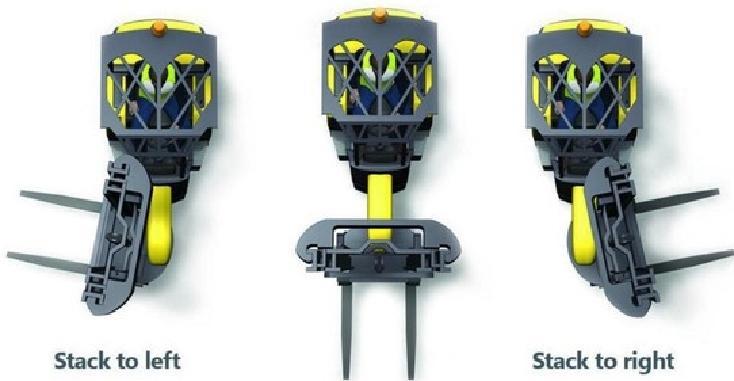

Rotate angle 220°
|
ADVANTAGES
Strong、Versatile、Flexiable
Enlarge warehouse spaces and save costs

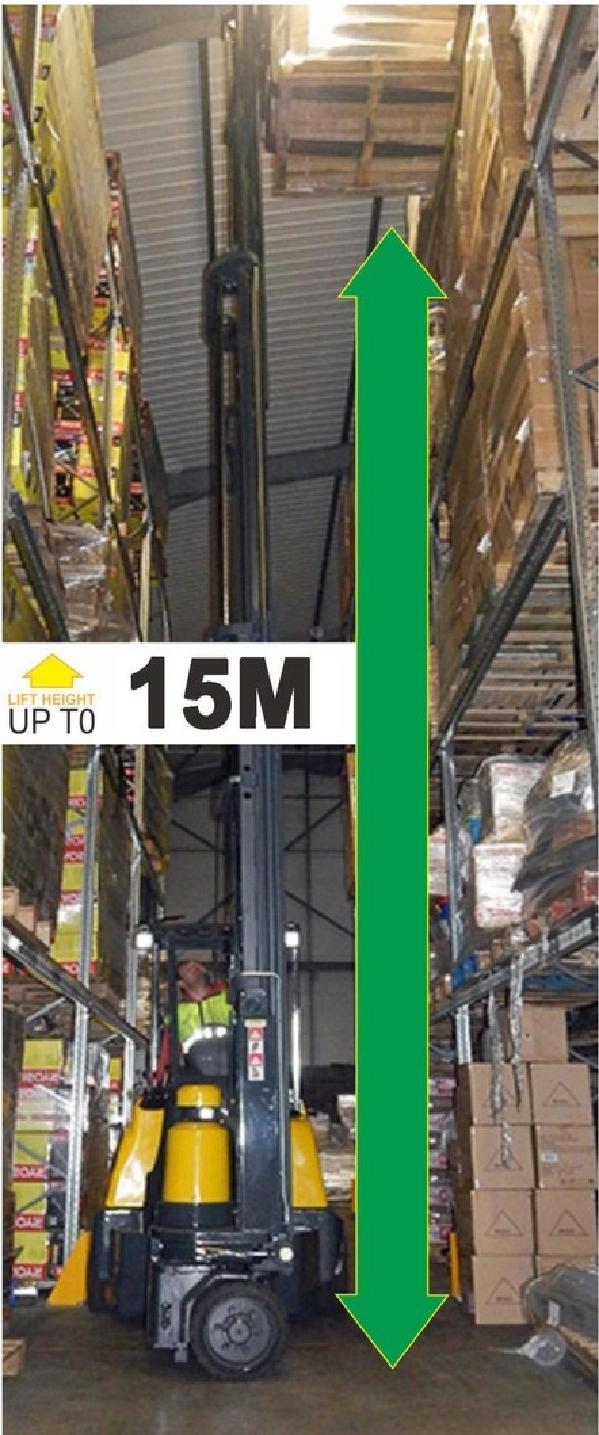

● Max lift height is up to 15m,min net working aisle width is 1.8m.
● It stores 50%more pallet positions than counterbalance forklifts and 30%more pallet positions than reach trucks.
●220°articulating angle,flexible working in the ultra-narrow aisle.
● 80V AC electric controller,low failure rate,less heating.
● 80V AC lifting&driving motor,maintenance free,powerful,high efficiency.
● Proportional valve,valve speed can be adjusted according to working conditions, making it easier and more accurate to load/unload pallets in narrow aisles.
● Fingertip control provides better control experience.With better inch move
performance,it makes NOELIFT VNA trucks very suitable for high lifting and narrow aisle working situations.
● Strong chassis and mast construction ensure heavy-duty use.
● It can drive on any floor surface,both inside and out,eliminating double handling, move pallet from lorry to rack in one step,so it save much time and money.
● The maintenance cost is significantly less than normal reach trucks/swing reach truck.
● The ergonomics design making it provide faster load cycle time and reduce drivers fatigue.
● Local dealer support and engineer services.
|

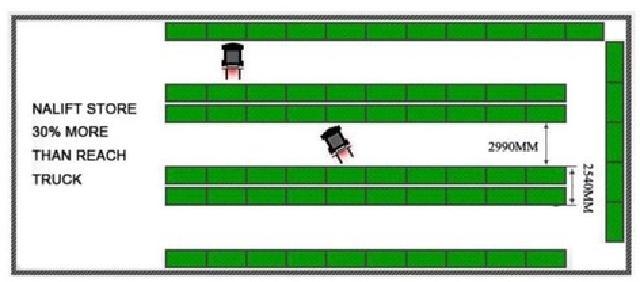

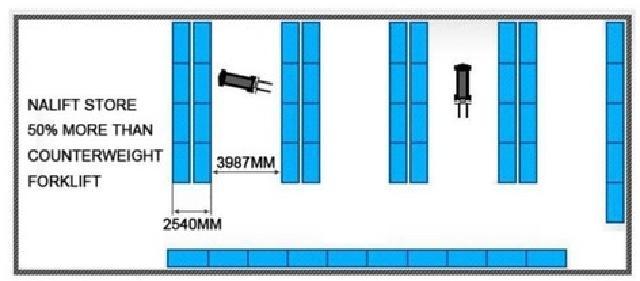

INCREASE WAREHOUSE CAPACITY
220°Rotate angle+50%Extra space
·Aisle width as narrow as 1800mm.
·NOELIFT stores 30%more pallets than reach trucks.
·NOELIFT stores 50%more pallets than counterbalanced forklift.
·All the work of counterbalanced forklifts and reach trucks can be done by only one NOELIFT articulated forklift.
·Increase storage and reduce warehouse costs.
|

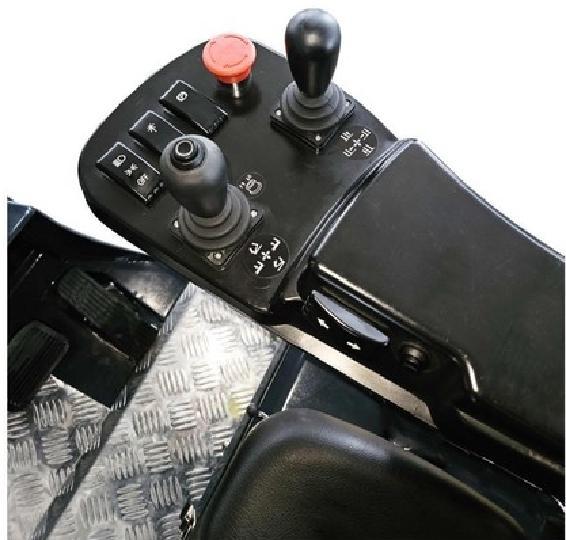

INCREASE WAREHOUSE CAPACITYFingertip Armrest

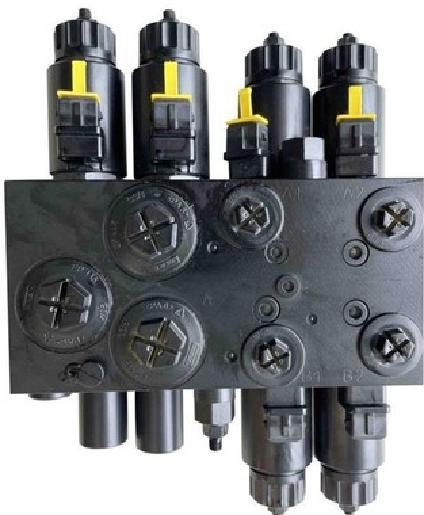

Proportional Valve
The fingertip armrest integrates lifting/lowering,side shifting,tilting,fork positioner telescopic forks,horn,direction switch,inch move functions.
The armrest combined with proportional valves enables the NOELIFT to have better micromotion,the speed of all functions can be adjusted according the drivers'demand.

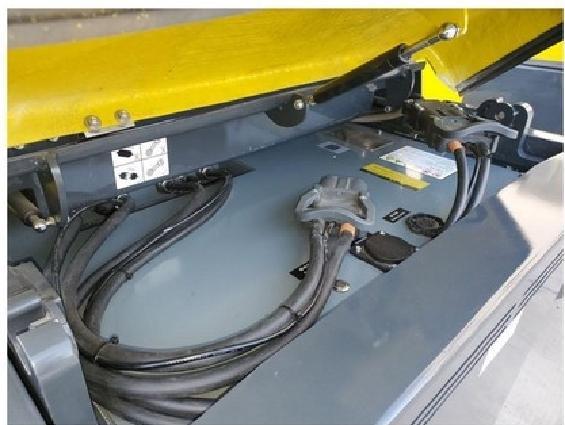

LiFePO4 Li-ION Battery
Capacity:80V/300Ah～80V/405Ah Warranty:5 years/5000 hours. Charging:2 hrs,Working:6 hrs

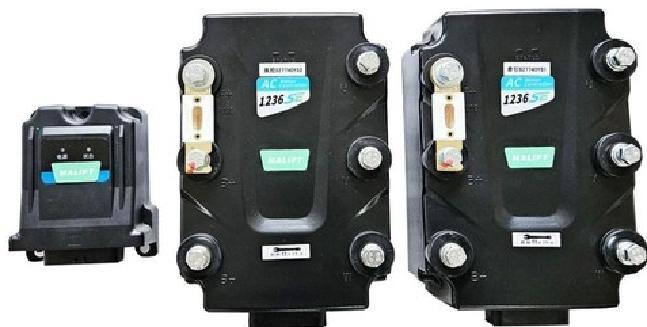

1236SE Electric Controller
80V AC
Developed in cooperation with American manufacturer
| TECHNICAL DATA
Model | Unit | NA15 | NA20 | NA25 | NA30 |
Rated capacity | KG | 1500 | 2000 | 2500 | 3000 |
Light height range | mm | 4300-8050 | 4300-10000 | 4300-15000 | 4300-15000 |
Free lift | mm | 1365-2835 | 1365-3635 | 1365-5986 | |
Mast closed height | mm | 2265-3735 | 2265-4615 | 2265-6715 | |
Extended height | mm | 5561-9311 | 5561-11391 | 5561-16289 | |
Overall length | mm | 2780 | |||
Ground clearance | mm | 50 | |||
Overhead guard height | mm | 2270 | |||
Chassis width rear | mm | 1060 | 1240 | 1400 | 1600 |
Chassis width front | mm | 980 | |||
Load center | mm | 600 | |||
Wheel base | mm | 1735 | |||
Seat height | mm | 1220 | |||
Mast tilt(back/fwd) | 。 | 3/1 | |||
Rotate angle(left/right) | 。 | 220 | |||
Ground speed | Km/h | 16 | |||
Lift speed(load/unload) | m/s | 0.55/0.70 | |||
Front tyre size | mm | 413*178 | |||
Rear tyre size | mm | 457*178 | 457*229 | ||
Grade ability(load/unload) | % | 18/20 | |||
Lead-acid battery | V/Ah | 80/400 | 80/500 | ||
Weight including battery | KG | 6400 | 6900 | 7400 | 7800 |
Weight excluding battery | KG | 5150 | 5310 | 5510 | 5810 |
Min turning radius | mm | 2035 | |||
Traction motor | KW | 19.5 AC | |||
Lifting motor | KW | 15 AC | |||
Min turning radius | mm | 2035 | |||
Min net working aisle width | mm | 1900 | 1900 | 2000 | 2100 |
Min 90°transfer aisle | mm | 2700 | |||
